Wheel Alignment: Inspection: Notes

Check the following items before taking wheel alignment measurement.

Check items before taking wheel alignment measurement:

• tire air pressure
• unbalanced right and left tire wear, size difference
• tire run-out
• ball joint excessive play, wear
• tie rod end excessive play, wear
• wheel bearing excessive play
• right and left wheel base imbalance
• steering link part deformed, excessive play
• suspension part deformed, excessive play

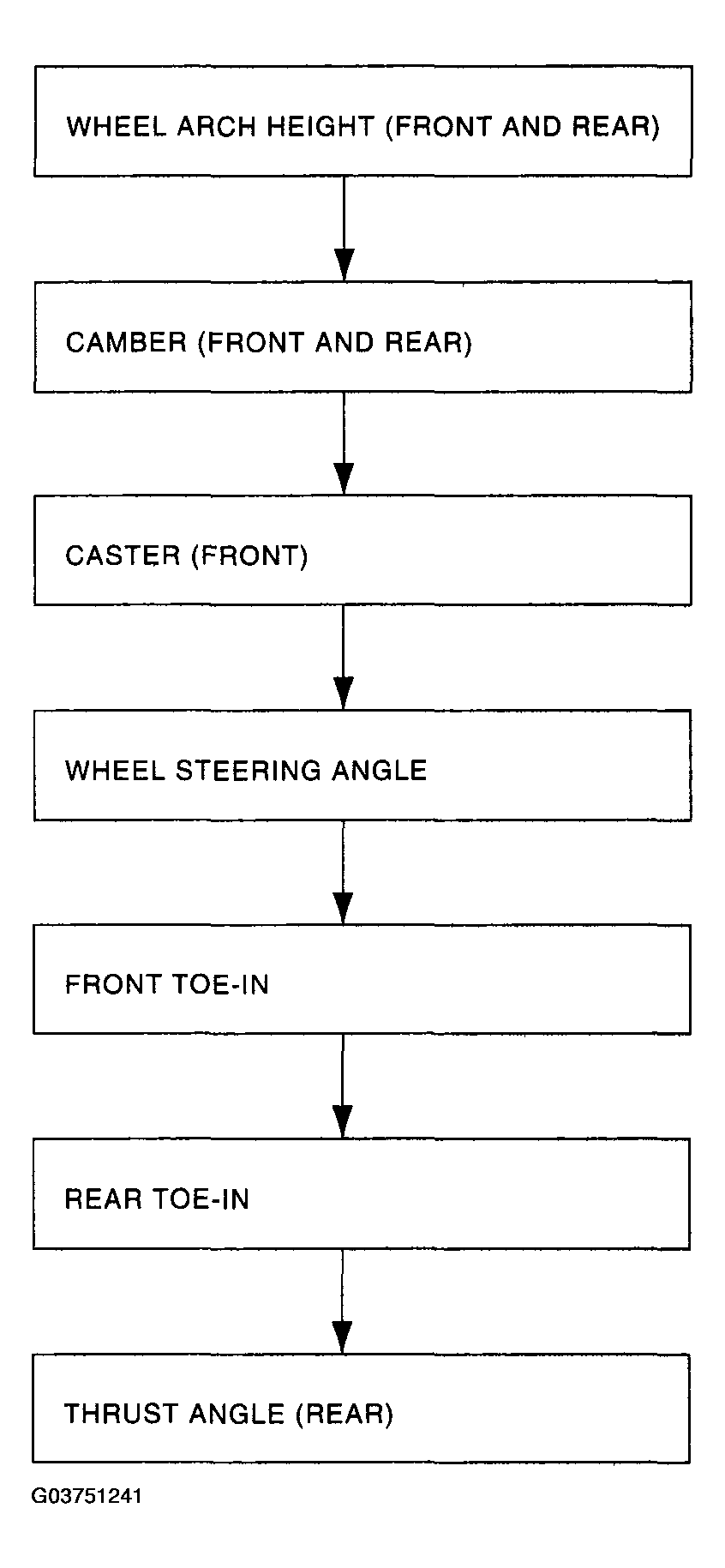

Check, adjust and/or measure wheel alignment in accordance with procedures indicated in Fig 1 :
