Link Front: Installation

Install in the reverse order of removal, observing the following instructions.

CAUTION:

Using transmission jack, support rear arm horizontally, install link front and tighten nuts to specified torque.

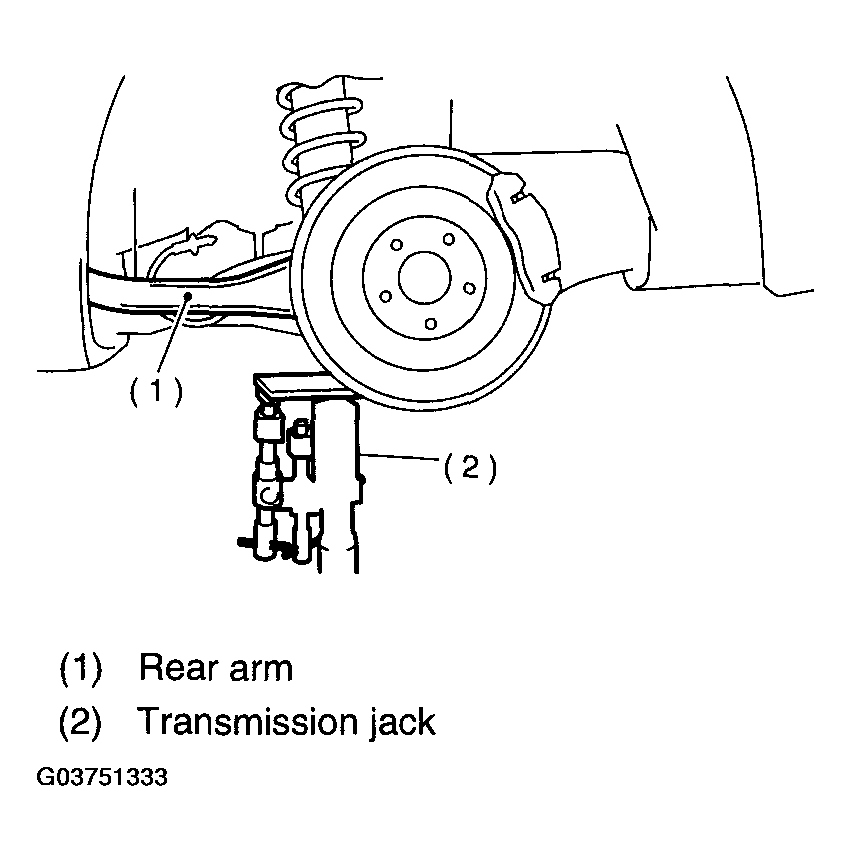

Fig 1: Supporting Rear Arm Horizontally
Courtesy of SUBARU OF AMERICA, INC.
Install link front with protruded side facing front.

Fig 2: Installing Link Front With Protruded Side Facing Front

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use a new self-locking nut.

NOTE: Check wheel alignment and adjust if necessary.

Tightening torque:

120 N.m (12.2 kgf-m, 88 ft-lb)
