Transmission Control Module (TCM) I/O Signal: Schematic

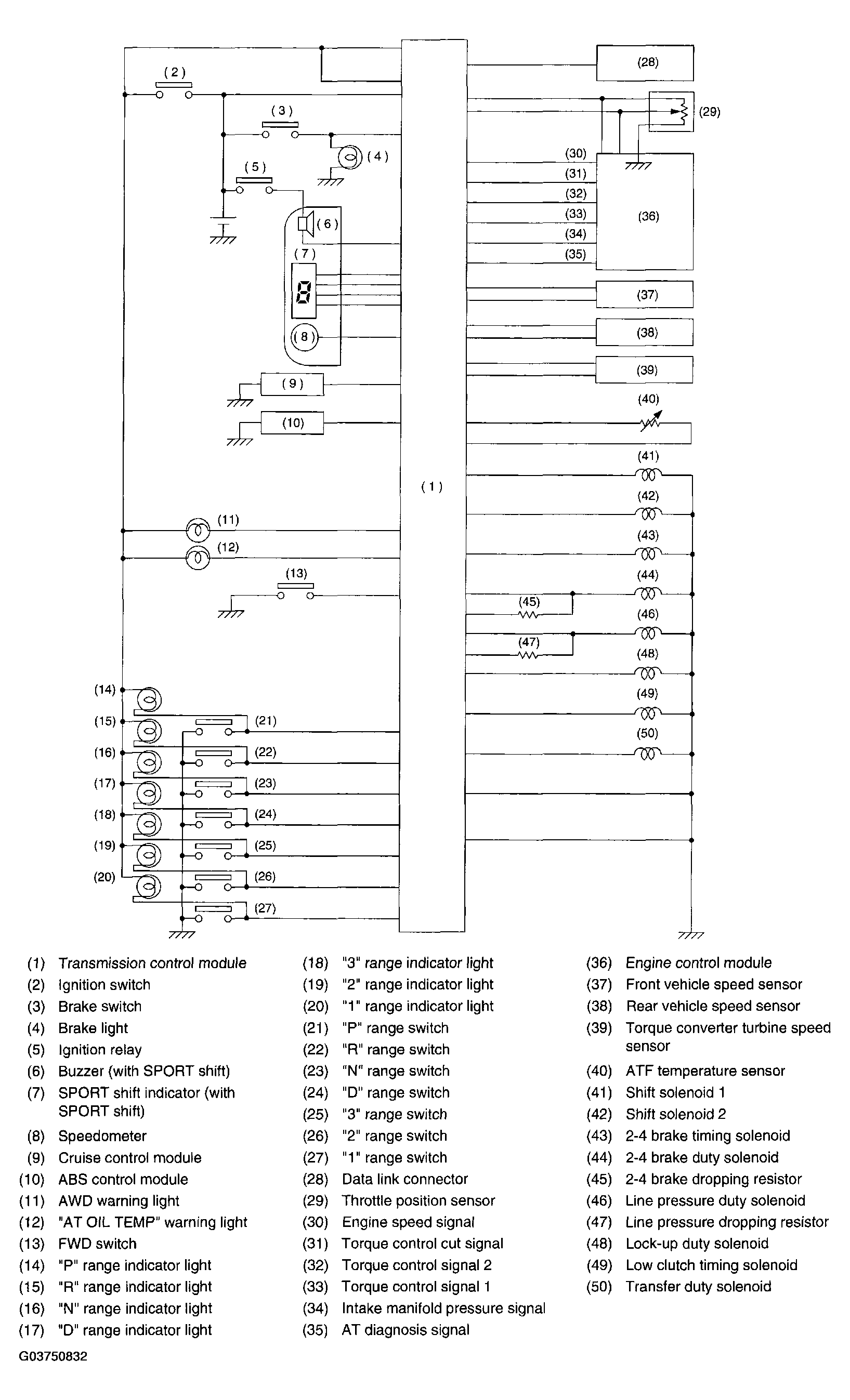

Fig 1: Identifying SCHEMATIC
G03750832Courtesy of SUBARU OF AMERICA, INC.
