Center Differential Carrier: Disassembly

Remove the seal rings.

Fig 1: Removing Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Using a press and the ST, remove the ball bearing.
ST 498077600 REMOVER

Fig 2: Removing Ball Bearing Using Remover ST498077600
Courtesy of SUBARU OF AMERICA, INC.

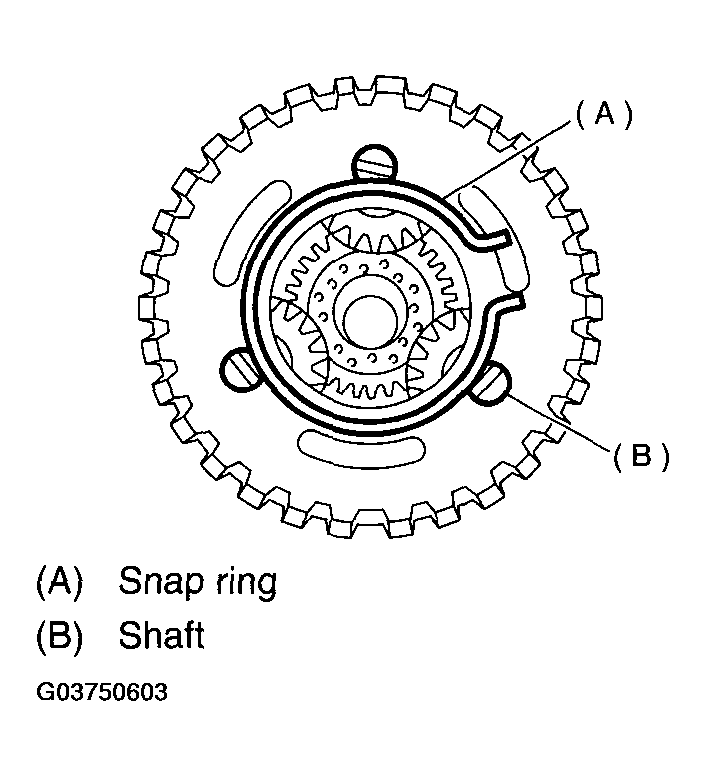

Remove the snap ring, and pull out the shaft from the center differential assembly.

Fig 3: Removing Snap Ring, And Pulling Out Shaft From Center Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust washers, pinion gears, and washers from the center differential assembly.

Fig 4: Removing Thrust Washers, Pinion Gears, And Washers From Center Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.
Pull out the intermediate shaft and thrust bearing.
