Center Differential Carrier: Installation

  1. Install the center differential assembly with the shim(s).
    NOTE: Insert the center differential assembly and shim(s) completely into the bearing shoulder bottom.

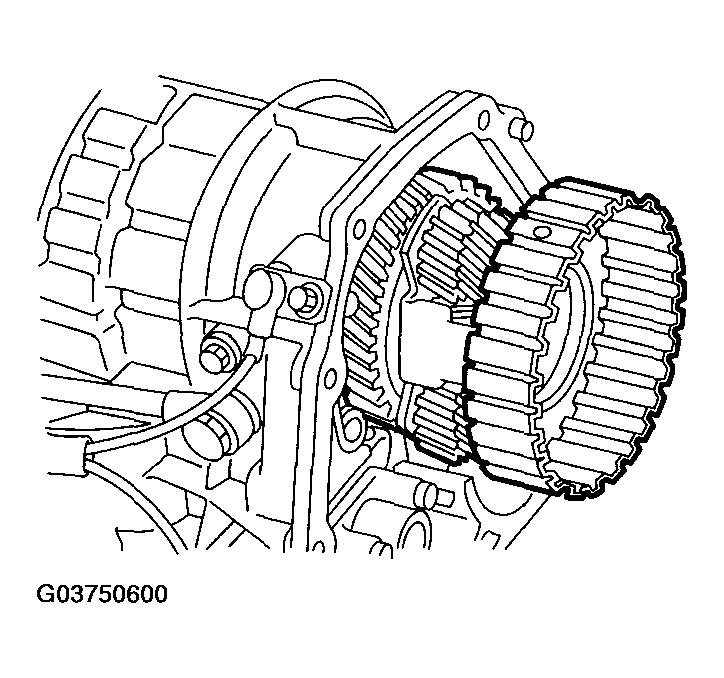

    Fig 1: Installing Center Differential Assembly With Shim(S)
    G03750600Courtesy of SUBARU OF AMERICA, INC.
  2. Insert the rear driveshaft. < Ref. to , INSTALLATION . >
  3. Connect the transmission case and extension case, and install the rear wheel speed sensor. < Ref. to , INSTALLATION . >
  4. Install the transmission assembly onto vehicle. < Ref. to , INSTALLATION . >
