Extension Case: Removal

  1. Remove the transmission assembly. < Ref. to , REMOVAL . >
  2. Remove rear vehicle speed sensor.
    • MPT MODEL

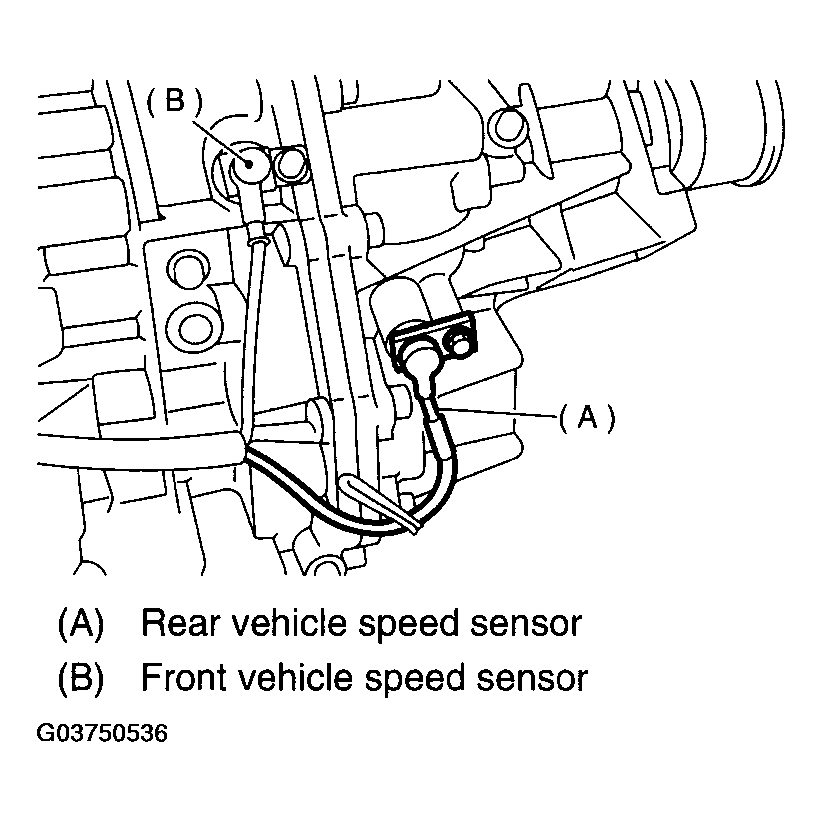

      Fig 1: Removing Rear Vehicle Speed Sensor - MPT Model
      G03750536Courtesy of SUBARU OF AMERICA, INC.
  3. Remove rear vehicle speed sensor connector.
    • VTD MODEL
      Fig 2: Removing Rear Vehicle Speed Sensor Connector - VTD Model
      G03750537Courtesy of SUBARU OF AMERICA, INC.
  4. Separate transmission case and extension case sections.

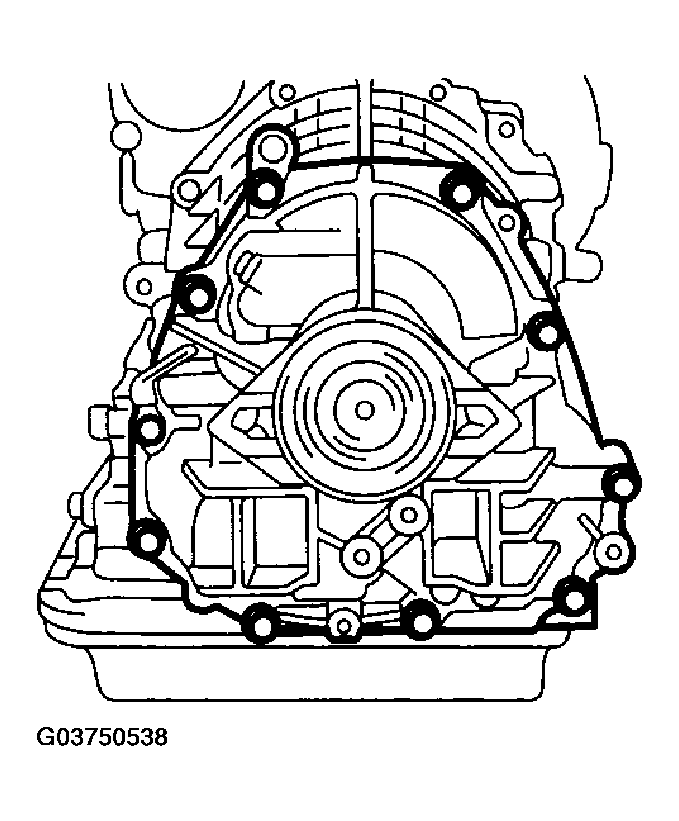

    Fig 3: Separating Transmission Case And Extension Case Sections
    G03750538Courtesy of SUBARU OF AMERICA, INC.
