General Description
›
Components With Torque Specifications
›
Reduction Gear With VTD
Reduction Gear With VTD

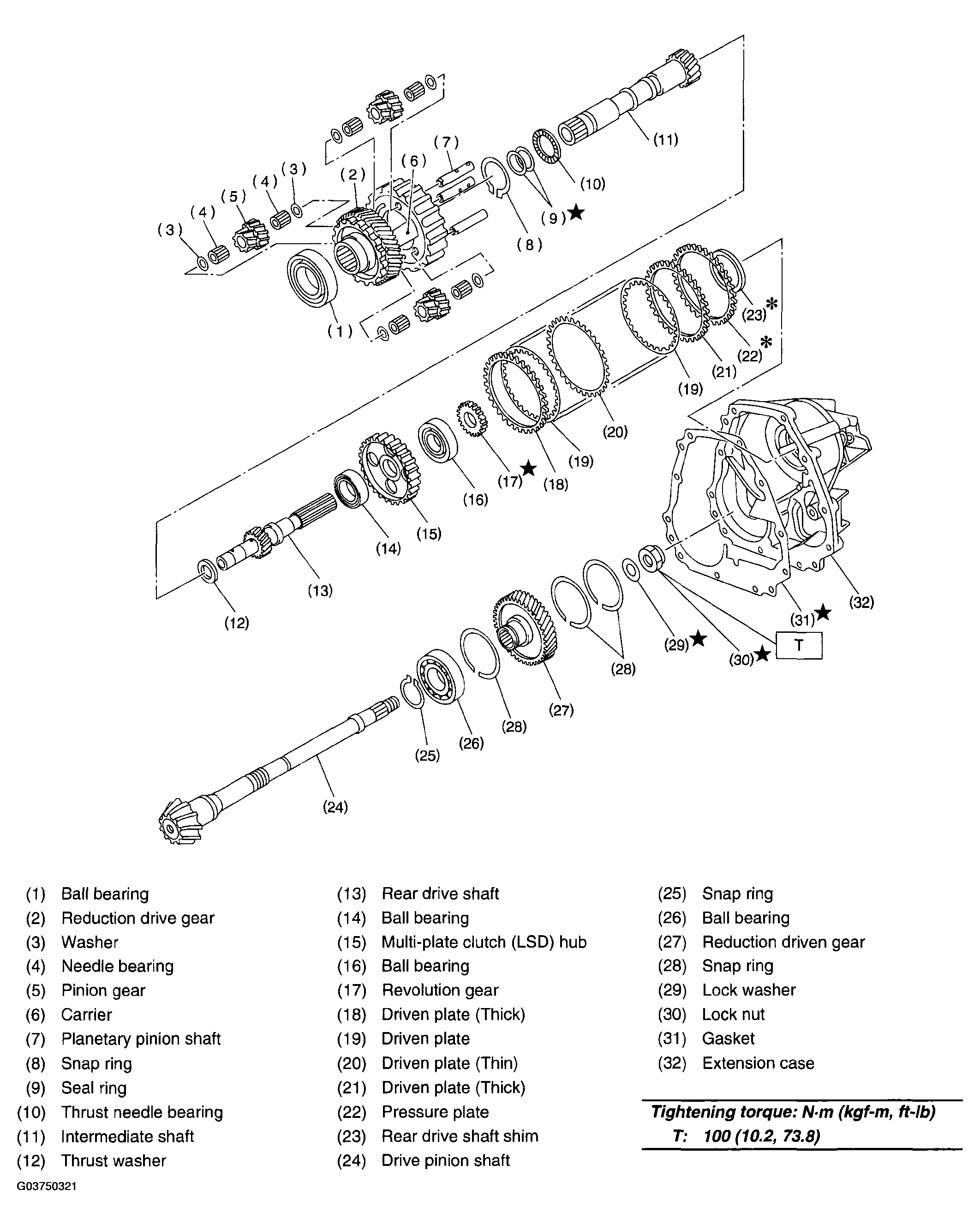

Fig 1: Exploded View Of Reduction Gear With VTD With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
