Automatic Transmission
›
General Description
›
Components With Torque Specifications
›
Torque Converter Clutch And Case
Torque Converter Clutch And Case

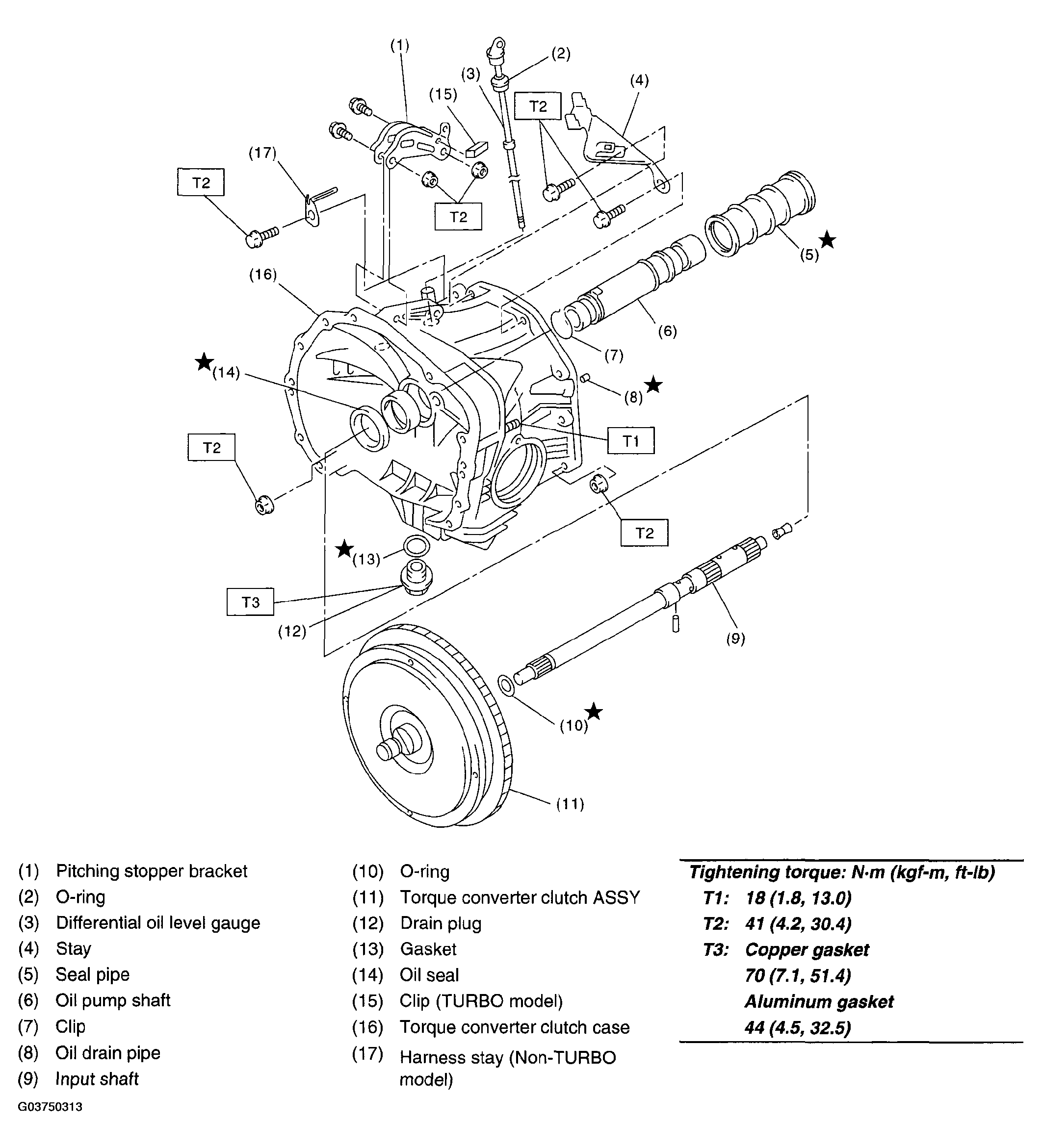

Fig 1: Replacement Components Of Torque Converter Clutch And Case With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
