Oil Charger Pipe: Installation

Install the oil charger pipe with new O-ring.
Tightening torque:

41 N.m (4.2 kgf-m, 30.4 ft-lb)

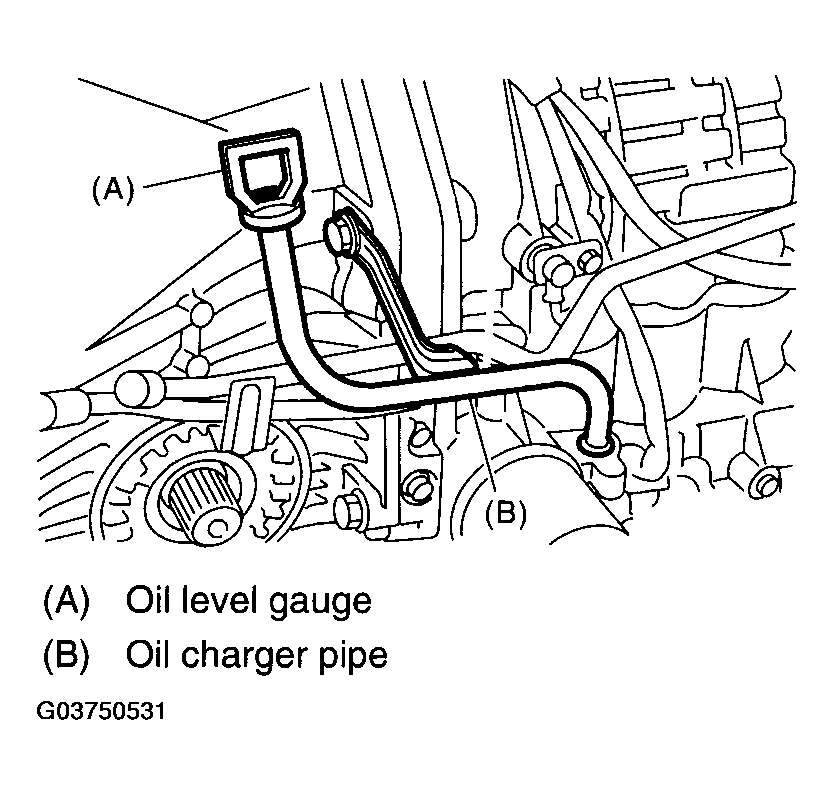

Fig 1: Removing Oil Charger Pipe With New O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Install starter motor.
< Ref. to INSTALLATION , Starter. >
Install the air cleaner case or air intake chamber. (Non-TURBO model)
< Ref. to INSTALLATION , Air Cleaner Case. >
Install intercooler. (TURBO model)
< Ref. to INSTALLATION , Intercooler. >
