Automatic Transmission
›
Transmission Mounting System
›
Removal
›
Pitching Stopper
Pitching Stopper
Remove the air cleaner case or intake chamber. (Non-TURBO model)
< Ref. to
REMOVAL
, Air Cleaner Case. >
Remove the intercooler. (TURBO model)
< Ref. to
REMOVAL
, Intercooler. >
Remove the pitching stopper.

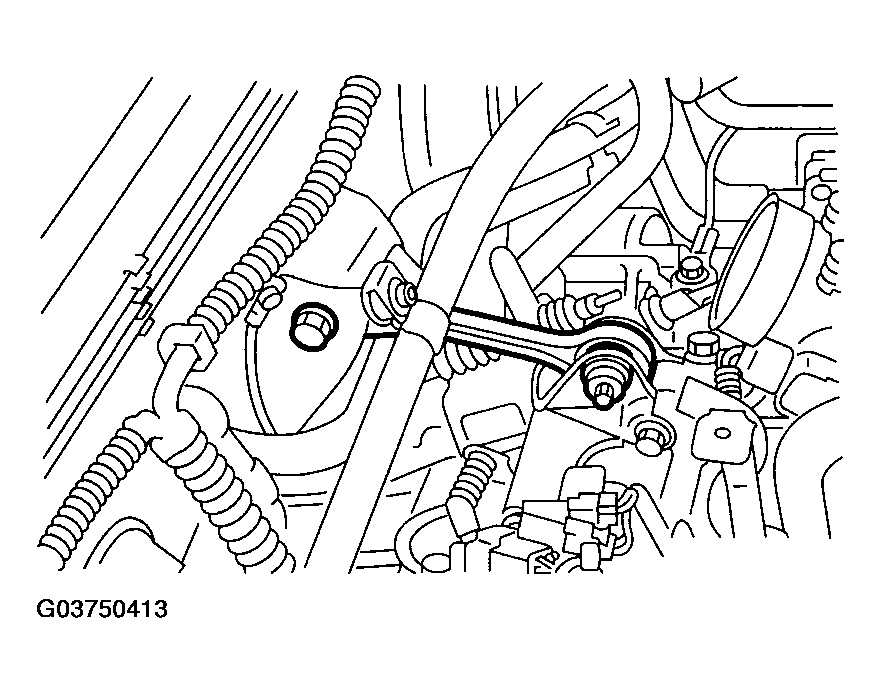

Fig 1: Removing Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
