Integrated Module: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G03750282Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the lower cover.
  3. Remove the knee bolster.

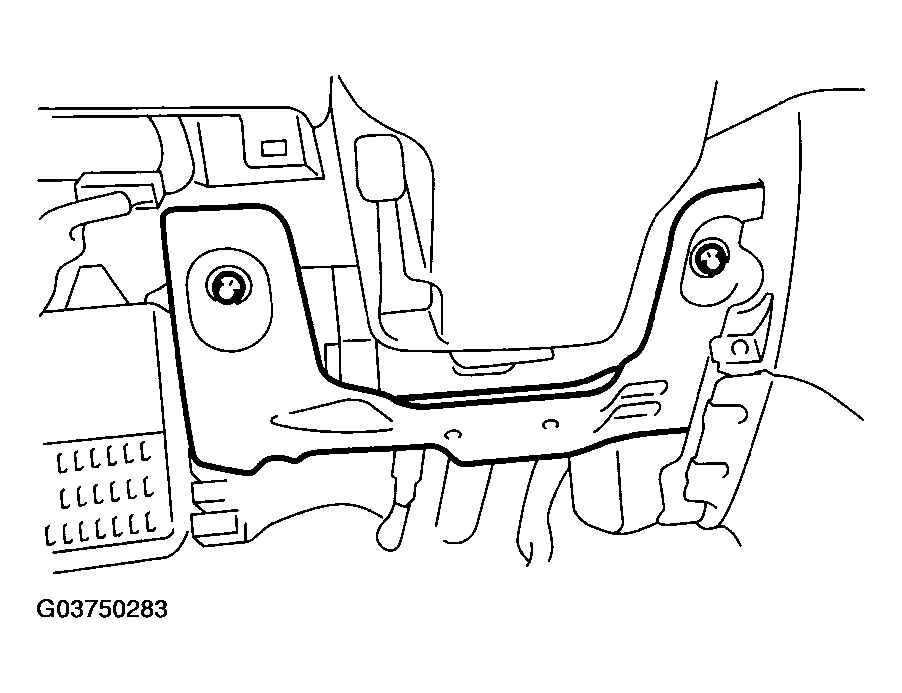

    Fig 2: Removing Knee Bolster
    G03750283Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from integrated module.
  5. Remove the integrated module from the steering column.
