Control Module I/O Signal: Schematic

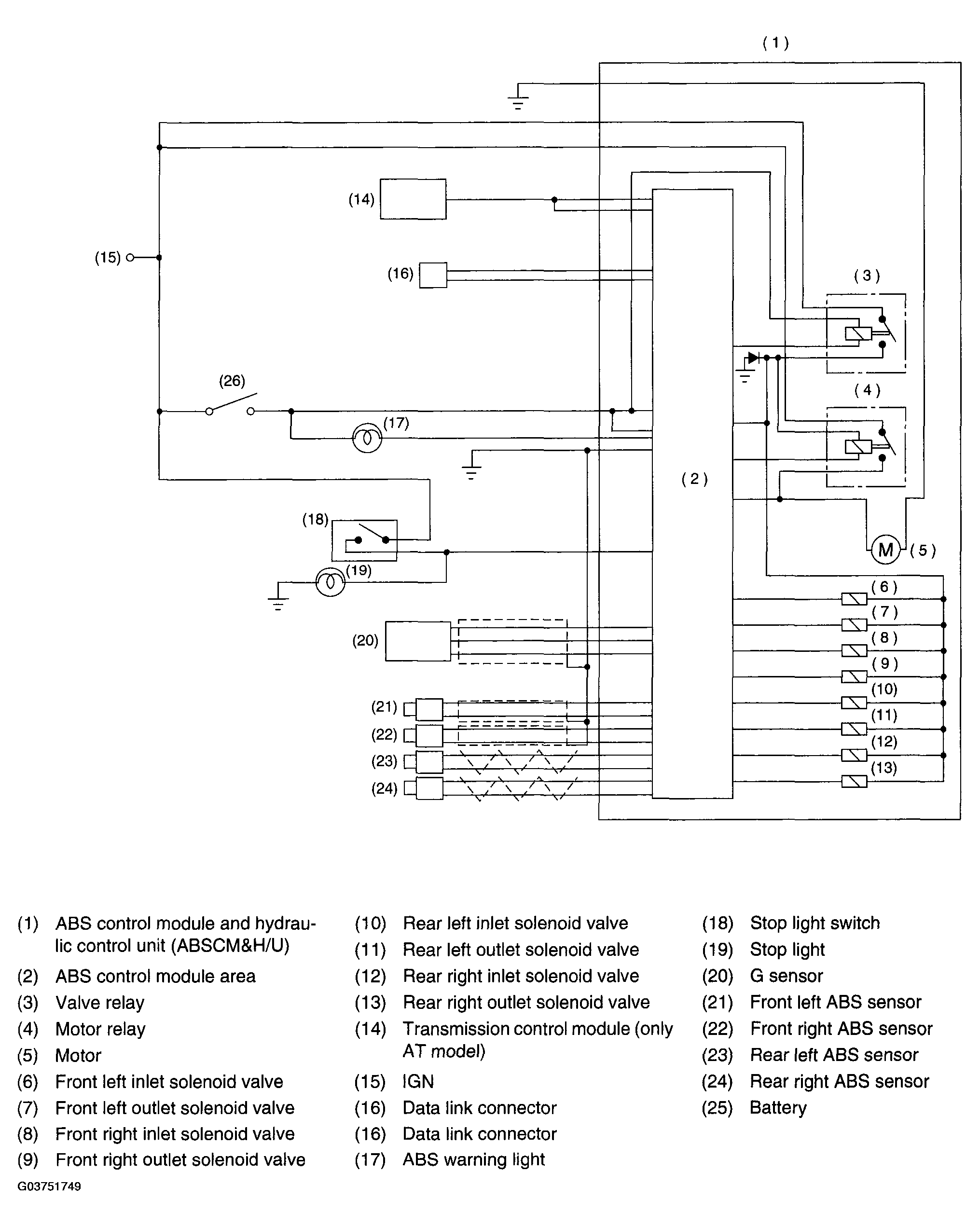

Fig 1: Control Module Schematic Diagram
G03751749Courtesy of SUBARU OF AMERICA, INC.
