ABS Control Module and Hydraulic Control Unit (ABSCM&H/U): Inspection: Notes

  1. Check connected and fixed condition of connector.
  2. Check specifications of the mark with ABSCM&H/U.
    MARK SPECIFICATION OF ABSCM&H/U

    Mark Model
    CI AT (OUTBACK)
    CJ MT (OUTBACK)

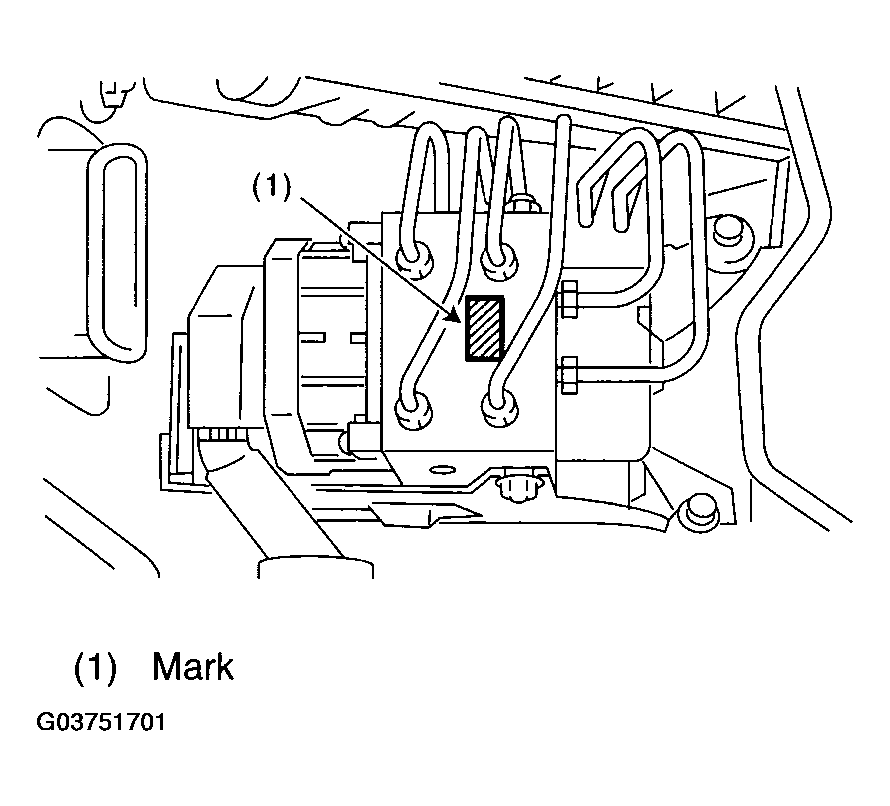

    Fig 1: Identifying Mark On ABSCM&H/U
    G03751701Courtesy of SUBARU OF AMERICA, INC.
