Conditions For Abs Sequence Control

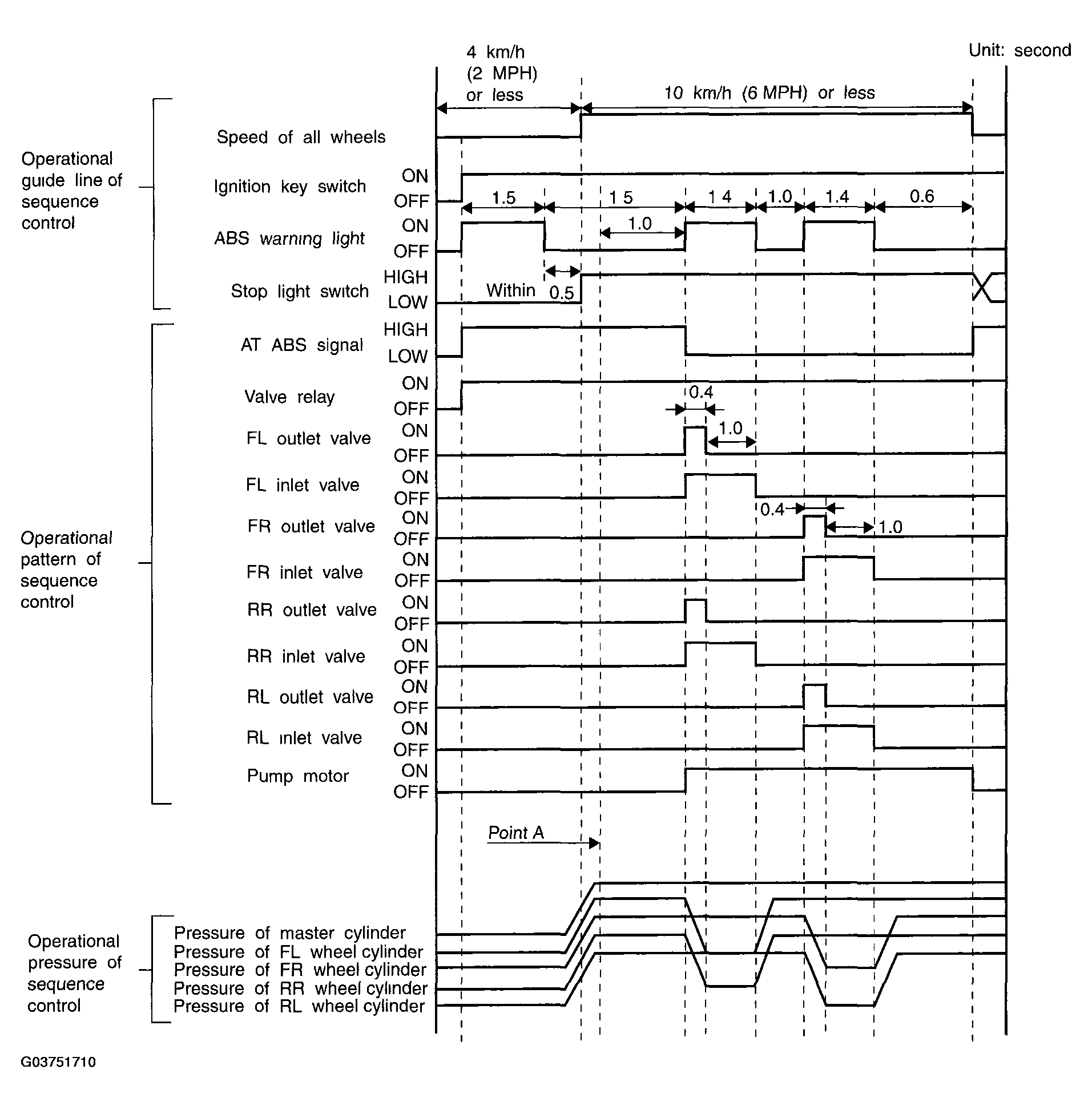

Fig 1: ABS Sequence Control Conditions Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

• When select monitor is used, control operation starts at point A.
• HIGH means high voltage.
• LOW means low voltage.
