Home › Subaru › 2005 › Baja Base, Standard › Repair and Diagnosis › Brakes › Traction Control › Brakes - Abs › General Description › Components With Torque Specifications › Sensor

Components With Torque Specifications: Sensor

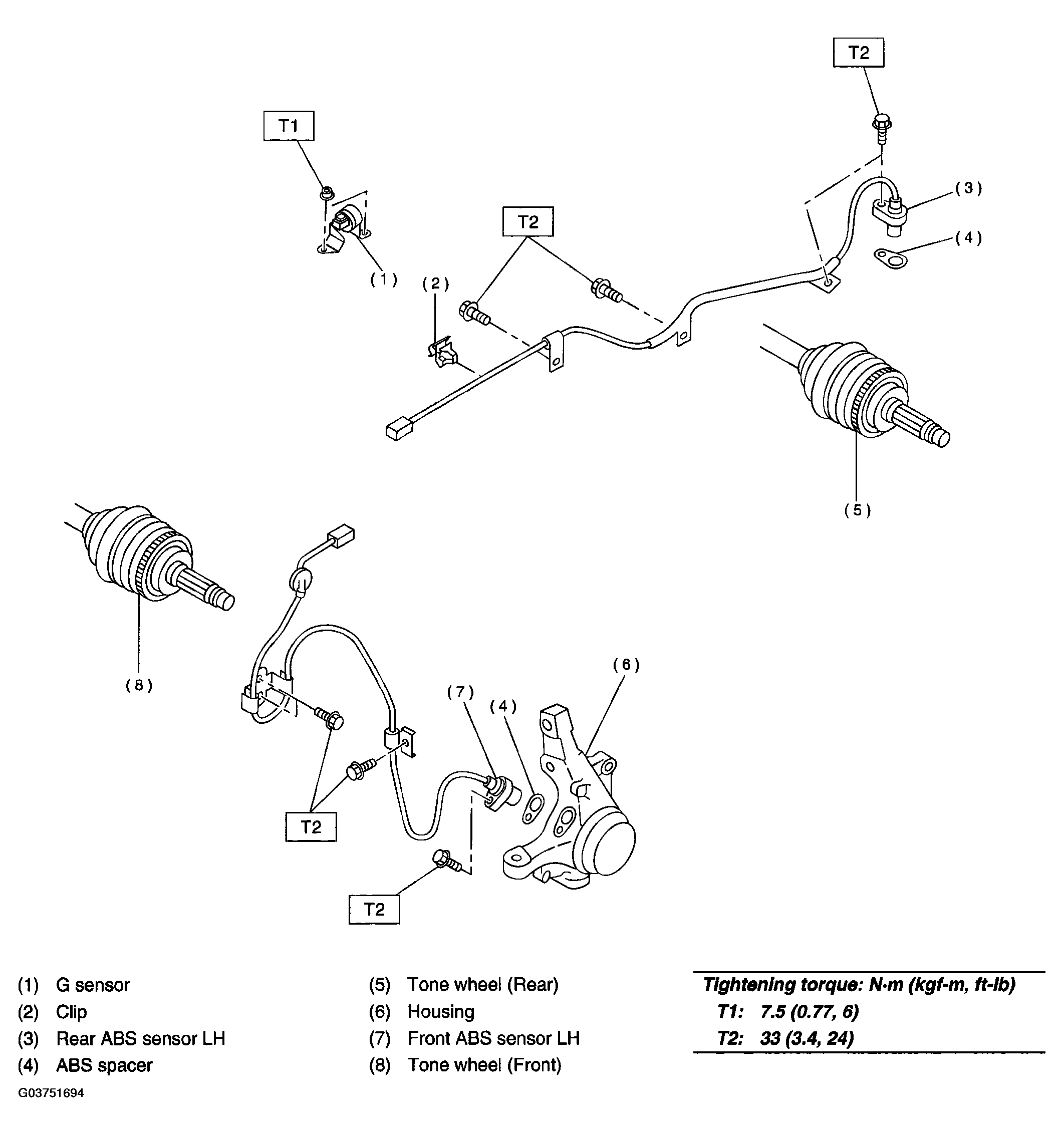

Fig 1: Identifying ABS Sensor Components
G03751694Courtesy of SUBARU OF AMERICA, INC.
