Starting/Charging Systems (H4SO): Battery: Removal

Remove battery cable holder (A) from battery rod.

Fig 1: Removing Battery Cable Holder From Battery Rod
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the positive (+) cable after disconnecting the negative (-) cable of battery.
Remove flange nuts from battery rods and take off battery holder.

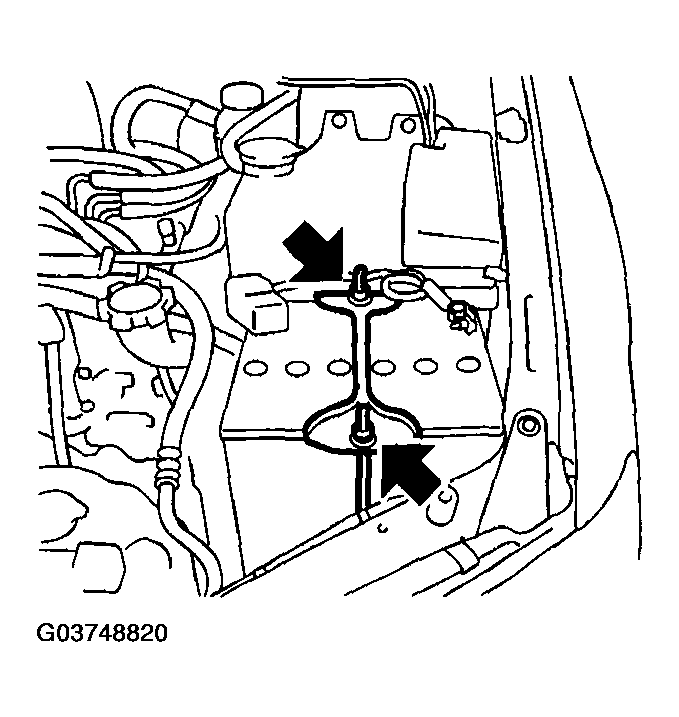

Fig 2: Identifying Battery Flange Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove battery.
