FixVault
Home
›
Subaru
›
2005
›
Baja Base, Standard
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Starting/Charging Systems (H4SO)
›
General Description
›
Components With Torque Specifications
›
Generator
Components With Torque Specifications: Generator

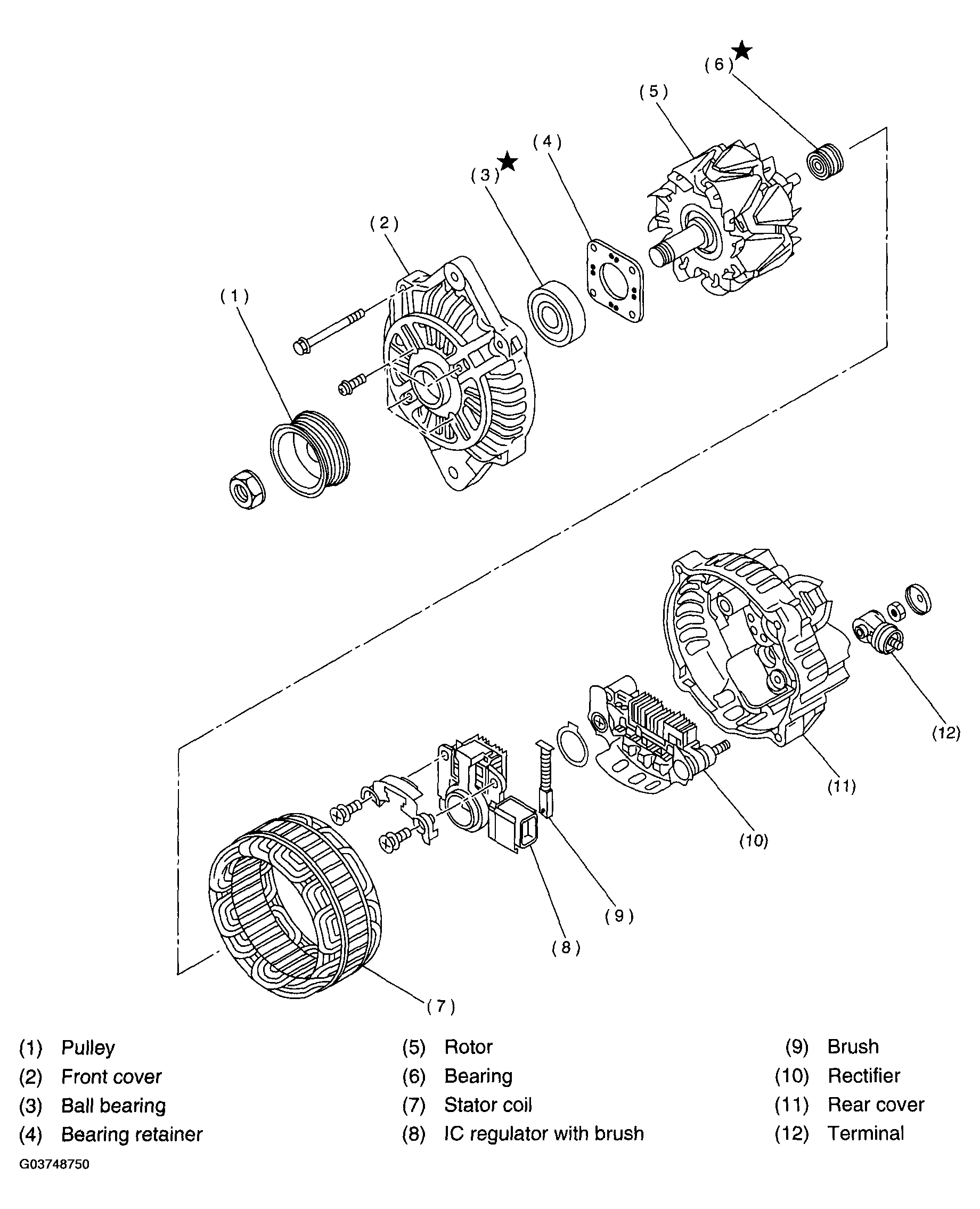

Fig 1: Exploded View Of Generator
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
