Starting/Charging Systems (H4SO)
›
General Description
›
Components With Torque Specifications
›
Starter
›
Mt Models
Mt Models

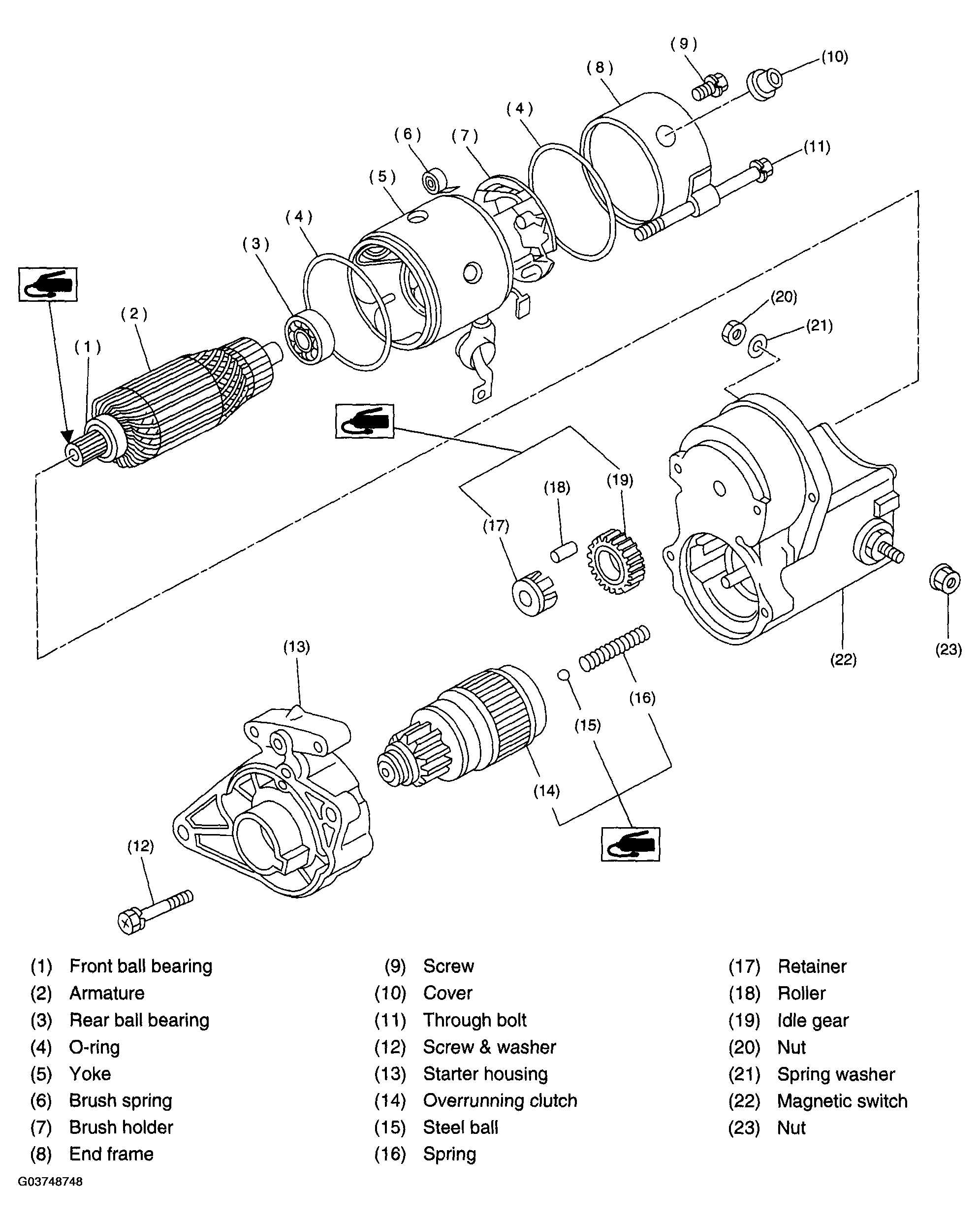

Fig 1: Exploded View Of Starter (MT Model)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
