Starting/Charging Systems (H4SO): Generator: Removal

Disconnect ground cable from battery.

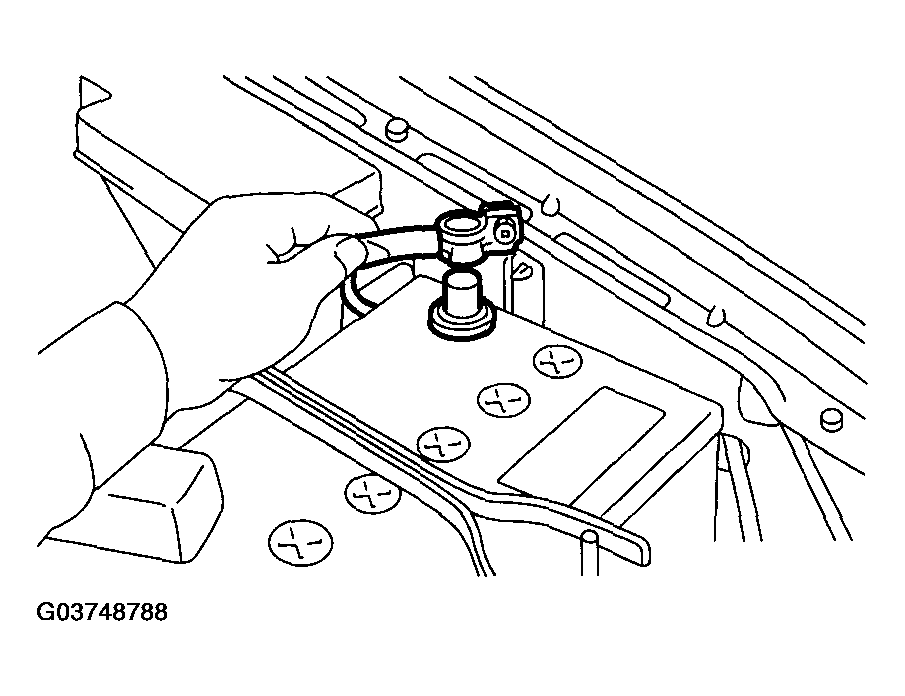

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector and terminal from generator.

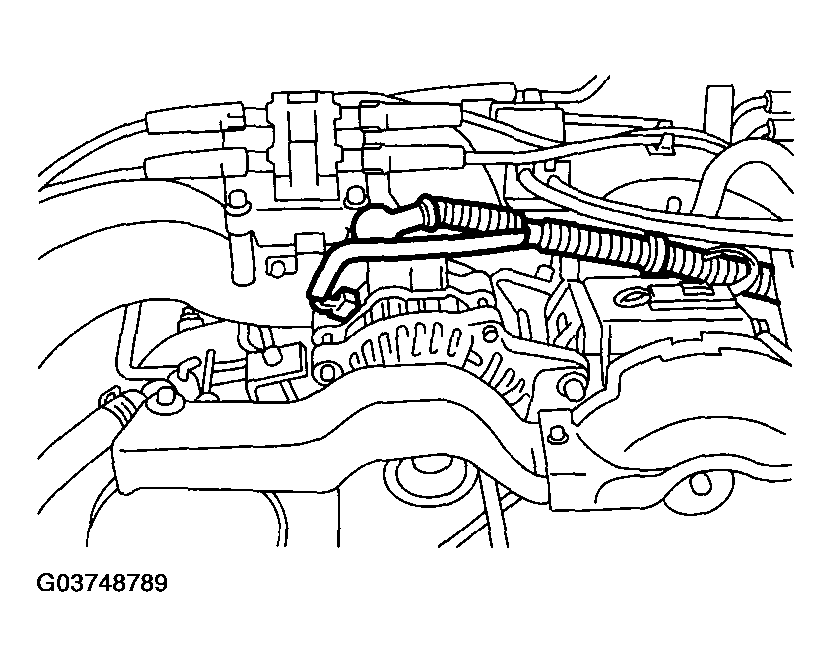

Fig 2: Disconnecting Connector And Terminal From Generator
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belt cover.

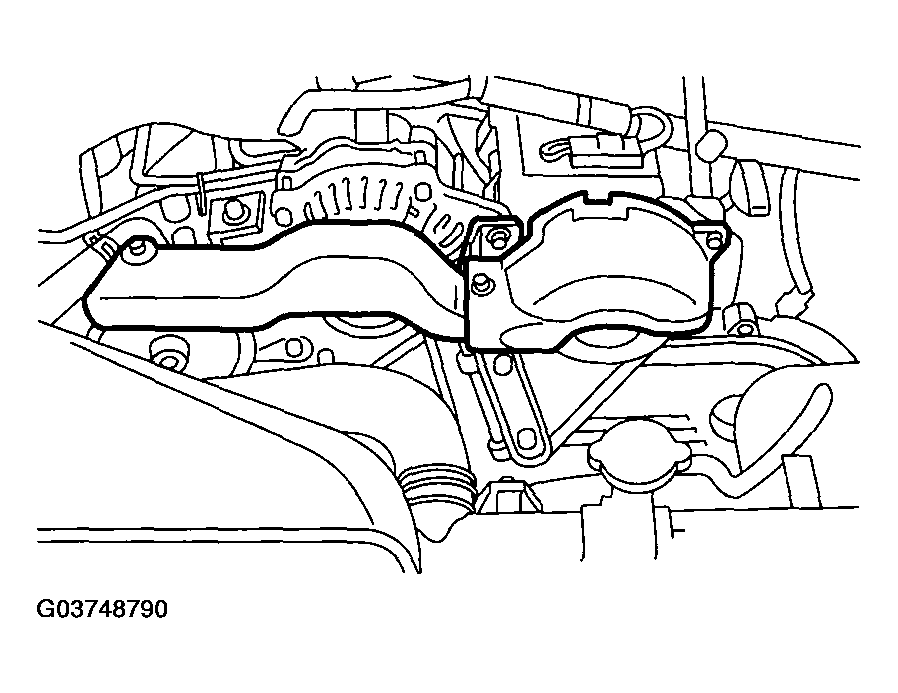

Fig 3: Removing V-Belt Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the front side V-belt.
< Ref. to FRONT SIDE BELT , REMOVAL, V-belt. > or < Ref. to FRONT SIDE BELT , REMOVAL, V-belt. >
Remove the bolts which install generator onto bracket.

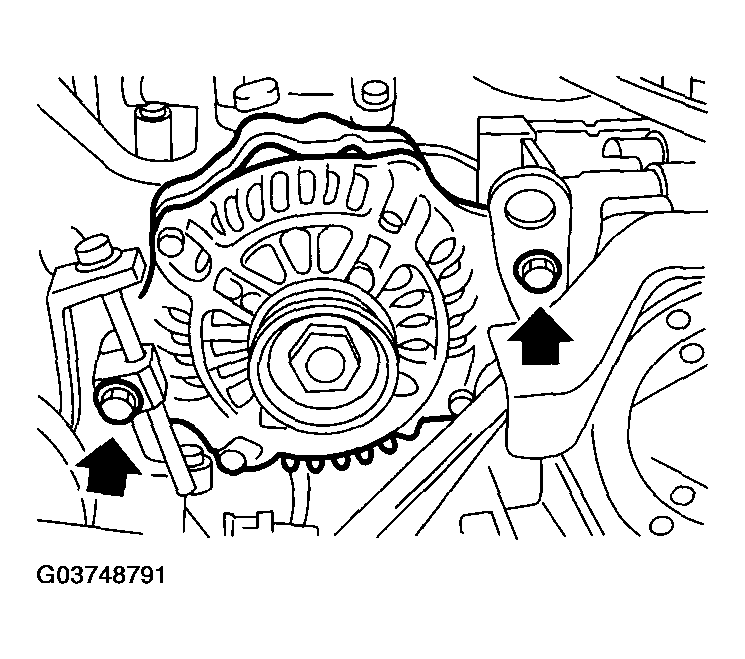

Fig 4: Installing Generator Onto Bracket
Courtesy of SUBARU OF AMERICA, INC.
