Section 48 (Wheel And Tire System): Tire: Inspection: Notes

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Take stones, glass, nails etc. out of the tread groove.
Replace the tire if as follows.

CAUTION:

When replacing a tire, make sure to use only the same size, construction and load range as originally installed.
Use a tire changer when removing tire from wheel.
To prevent damaging of transmitter, do not use the bead breaker in the position as shown in Fig 1 . (Model with tire pressure monitoring system)

Fig 1: Preventing Damage to Transmitter
Courtesy of SUBARU OF AMERICA, INC.

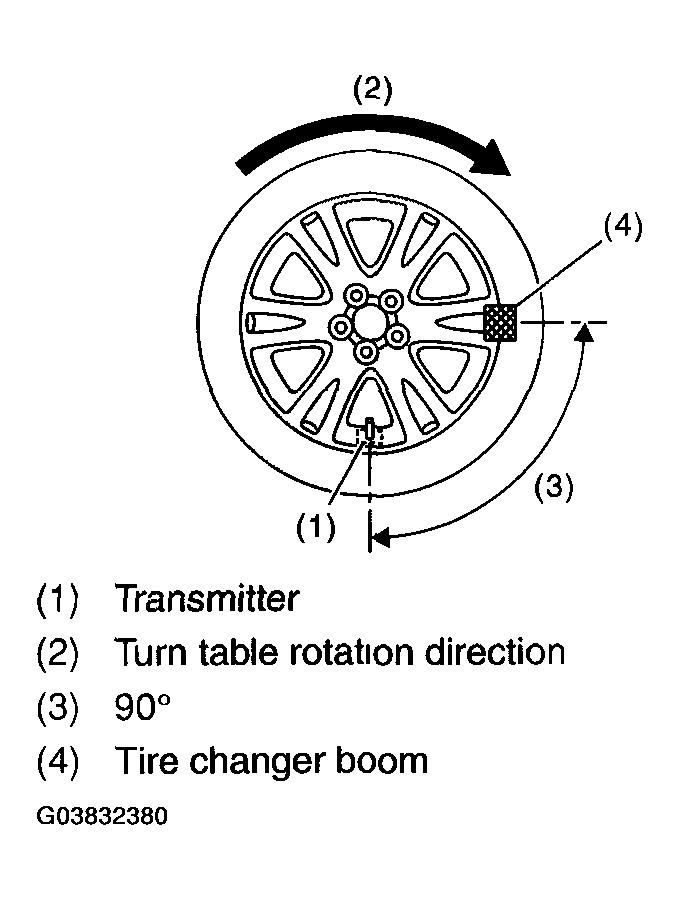

To prevent damaging of transmitter, set the tire changer boom in the position as shown in Fig 2 .

Fig 2: Setting Tire Changer Boom In Position

Courtesy of SUBARU OF AMERICA, INC.

When large crack on side wall, damage or crack on tread is found.
When the "tread wear indicator" appears as a solid band across the tread.

Fig 3: Identifying Tread Wear Indicator
Courtesy of SUBARU OF AMERICA, INC.
When a crack on tire valve is found, replace the tire valve.
