Headlight Assembly: Removal

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the air intake duct. (When removing the headlight RH)

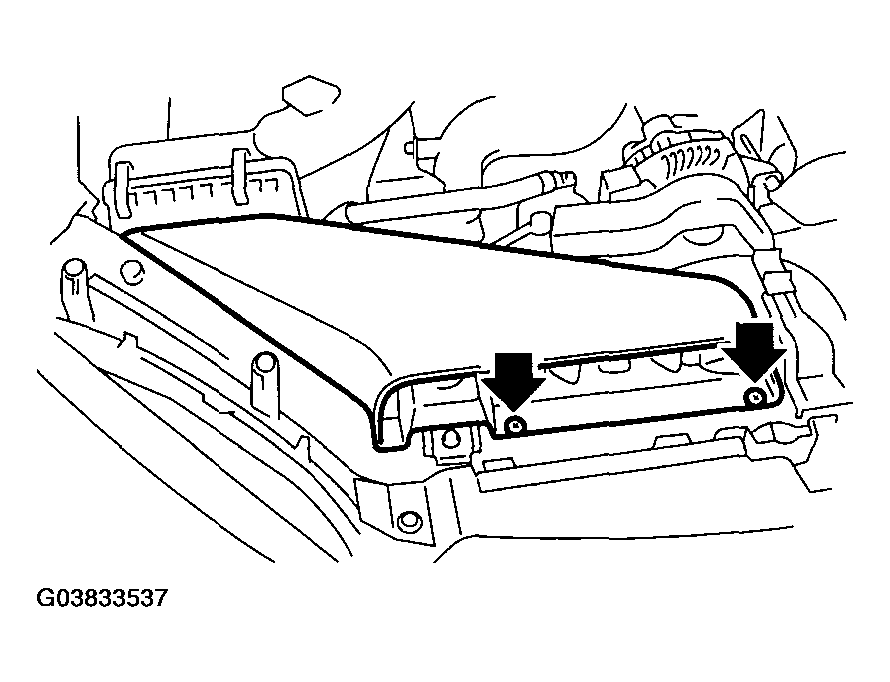

    Fig 1: Removing Air Intake Duct
    G03833537Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the front grille. < Ref. to REMOVAL , Front Grille. >
  4. Remove the front bumper. < Ref. to REMOVAL , Front Bumper. >
  5. Disconnect each harness connector.
  6. Remove the 5 bolts, disengage the clip, and then detach the headlight assembly.

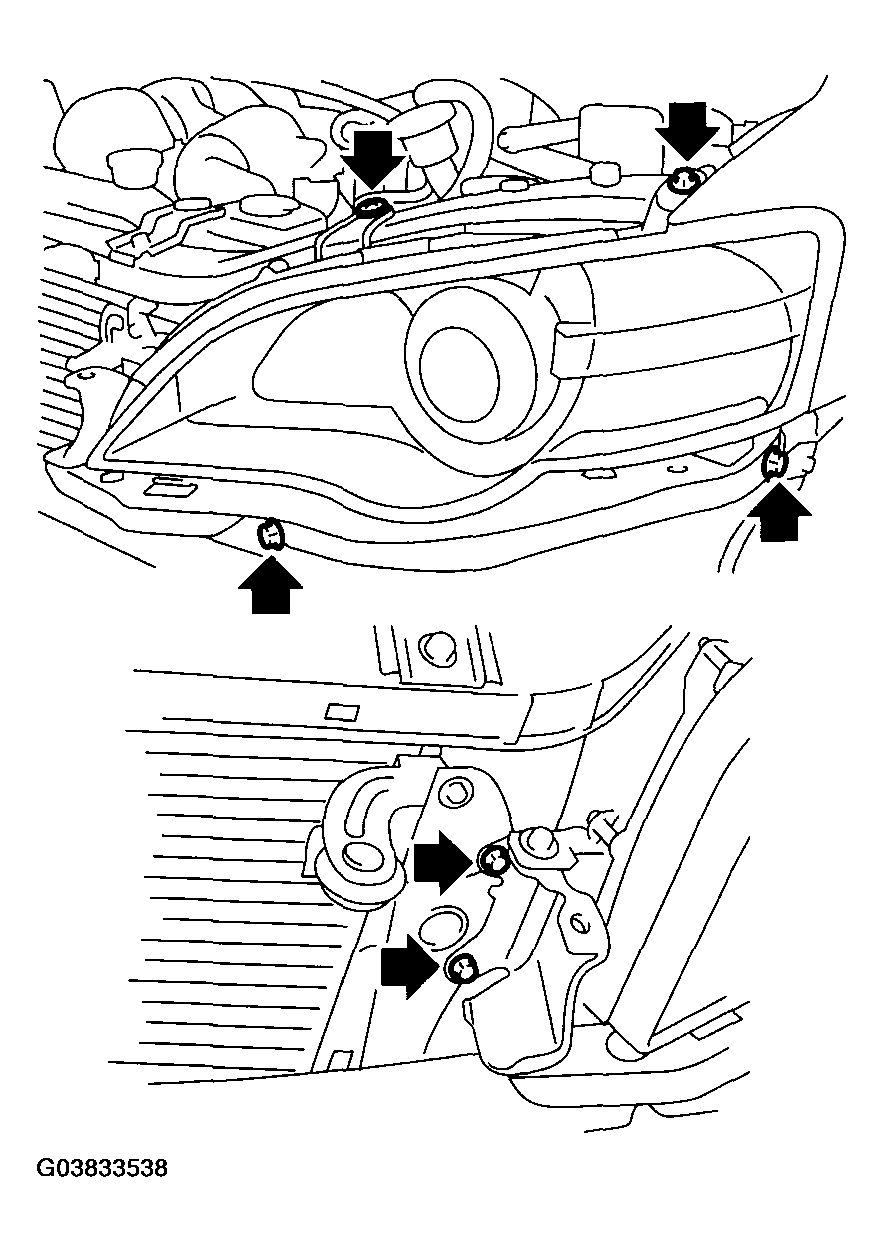

Fig 2: Removing Bolts
G03833538Courtesy of SUBARU OF AMERICA, INC.
