Section 12 (Automatic Transmission)
›
General Description
›
Components With Torque Specifications
›
Transfer And Extension Case With VTD
Transfer And Extension Case With VTD
WARNING:
This page is about a different variant/trim than selected.

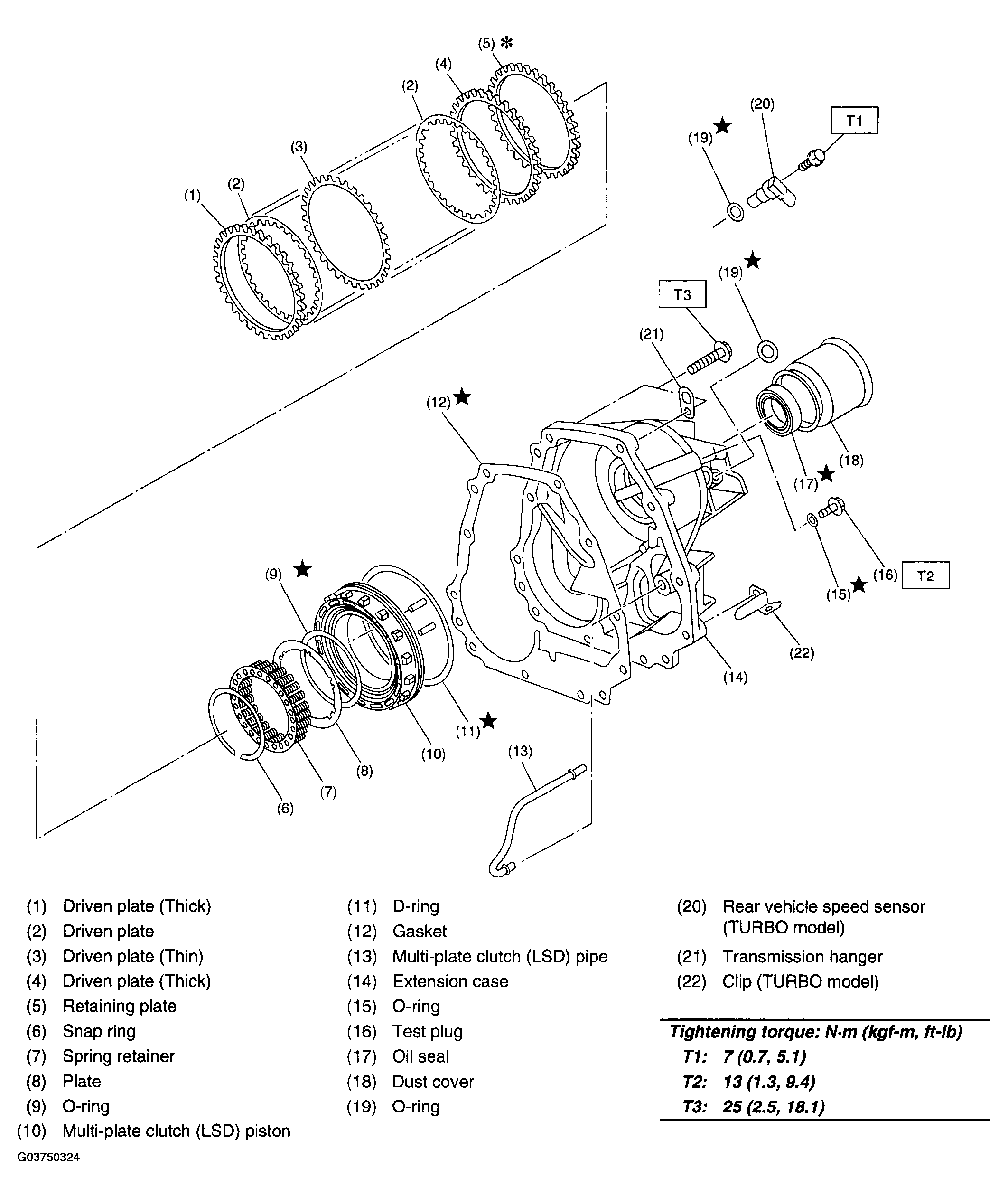

Fig 1: Exploded View Of Transfer And Extension Case With VTD With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
