MPT Model

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. < Ref. to , REMOVAL . >
  2. Remove rear vehicle speed sensor, and separate the transmission case and extension case. < Ref. to , REMOVAL . >
  3. Set the range select lever to "P".
  4. Straighten the staked portion, and remove the lock nut.

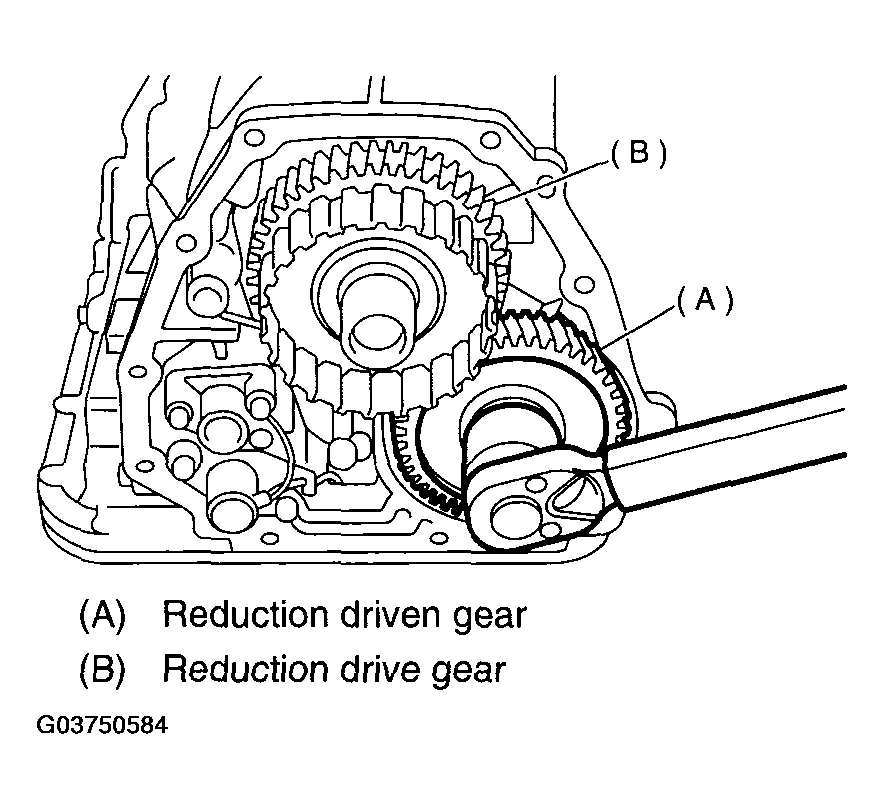

    Fig 1: Removing Lock Nut - MPT Model
    G03750584Courtesy of SUBARU OF AMERICA, INC.
  5. Using the ST1 and ST2, extract the reduction driven gear.

    ST1 499737000 PULLER

    ST2 899524100 PULLER SET

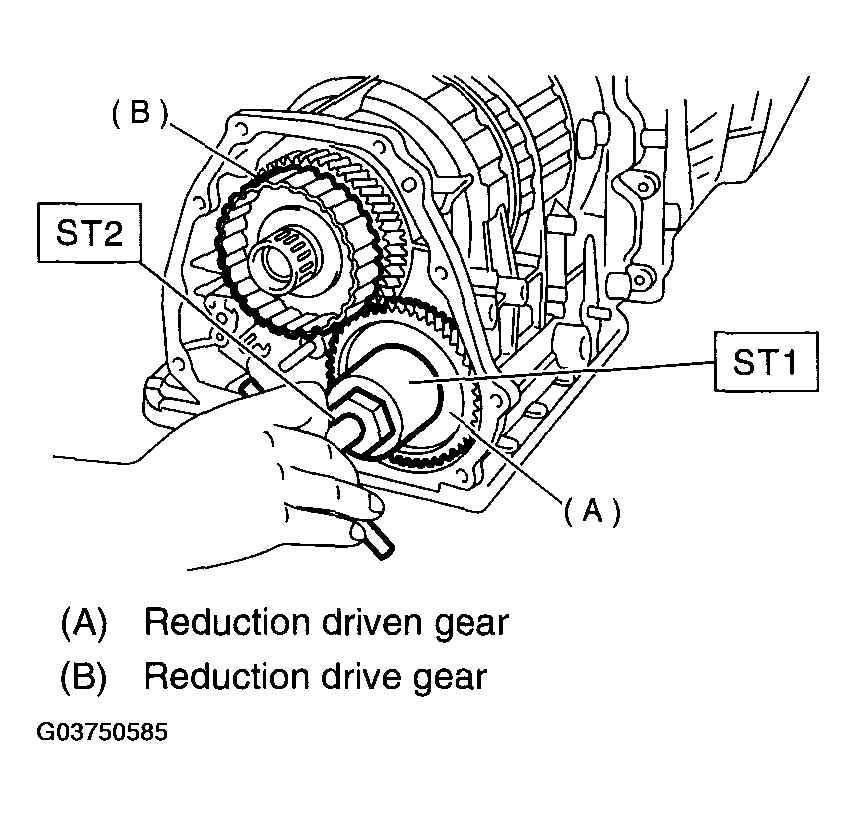

    Fig 2: Extracting Reduction Driven Gear Using Puller ST1-499737000 And Puller Set ST2-899524100
    G03750585Courtesy of SUBARU OF AMERICA, INC.
