General Description
›
Components With Torque Specifications
›
Steering Wheel And Column
Steering Wheel And Column

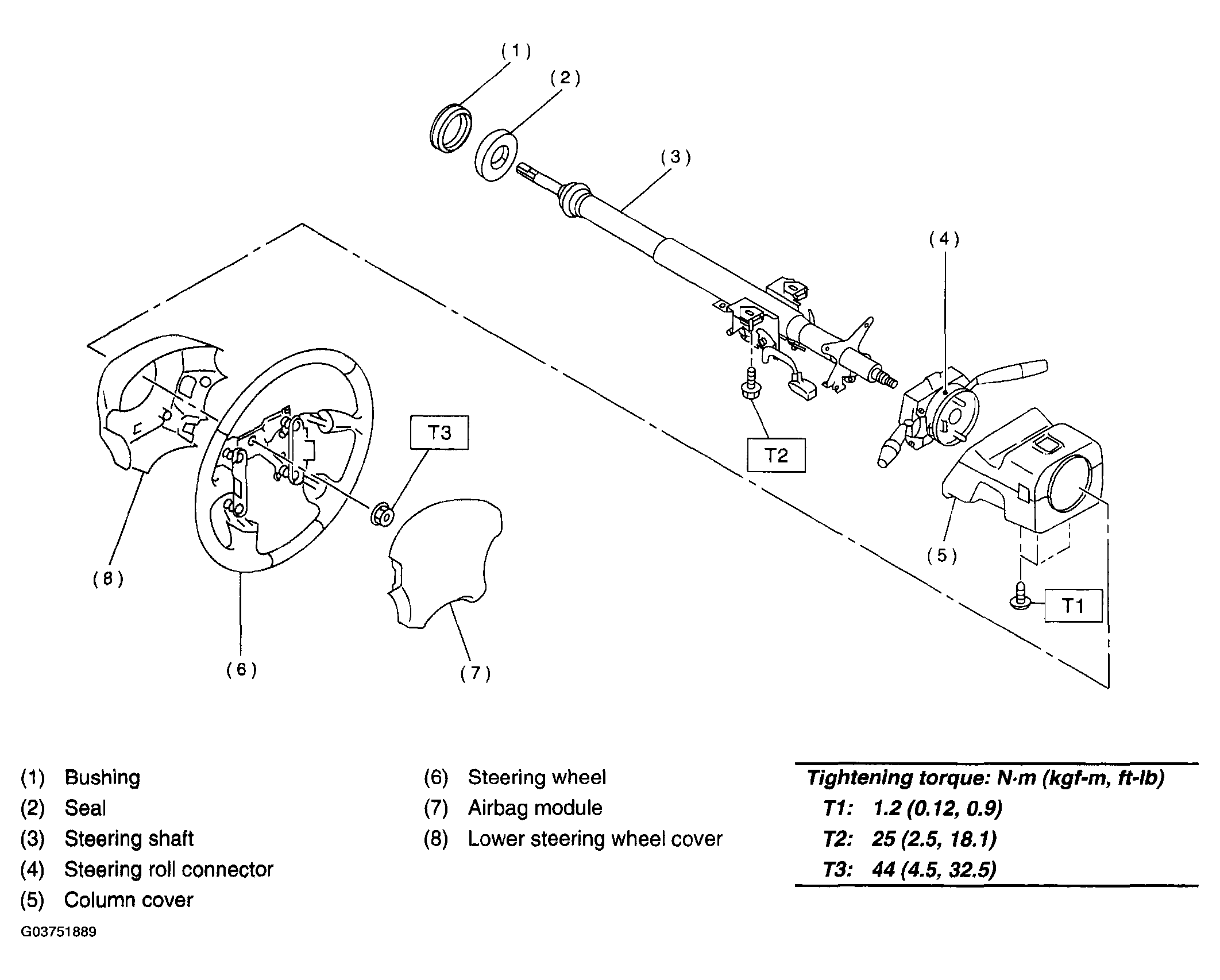

Fig 1: Exploded View Of Steering Wheel And Column Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
