Steering Wheel: Removal

  1. Disconnect ground cable from battery.
  2. Set tires to straight-ahead position.
  3. Remove airbag module. < Ref. to REMOVAL , Driver's Airbag Module . >
    WARNING: Always refer to "Airbag System" before performing airbag module service (if so equipped). < Ref. to INSPECTION , Driver's Airbag Module . >
  4. Remove steering wheel nut, and then draw out steering wheel from shaft using steering puller.
    NOTE: Make matching marks on steering wheel and steering column in advance.

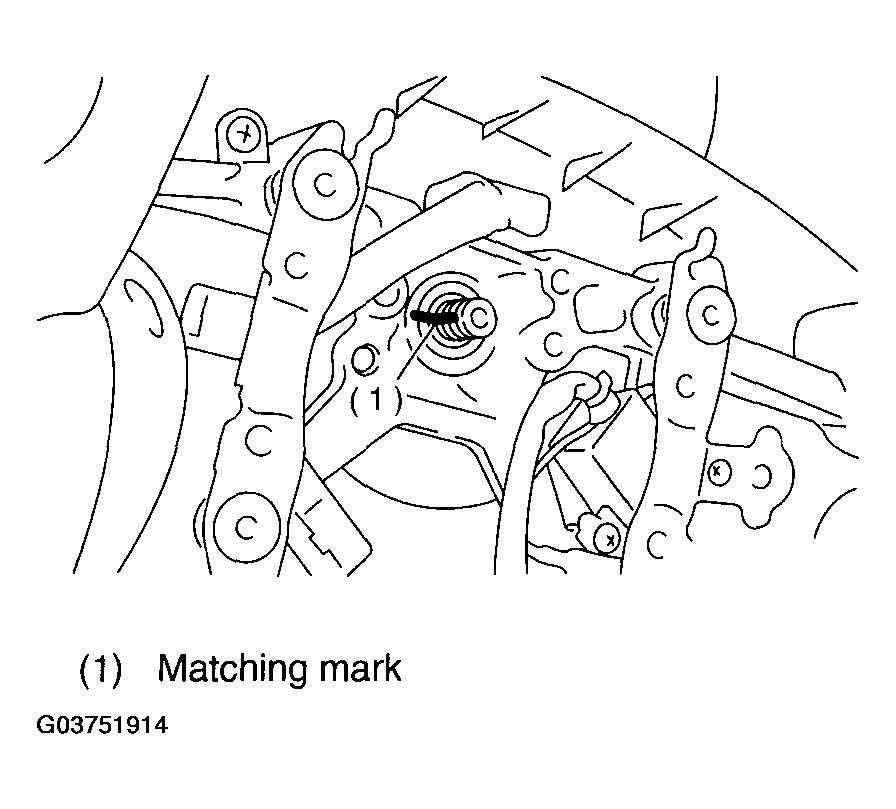

    Fig 1: Removing Steering Wheel Nut
    G03751914Courtesy of SUBARU OF AMERICA, INC.
