Main Relay: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G03749126Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the driver's side lower cover.
  3. Disconnect the connectors from the main relay.
  4. Remove the main relay from the bracket.

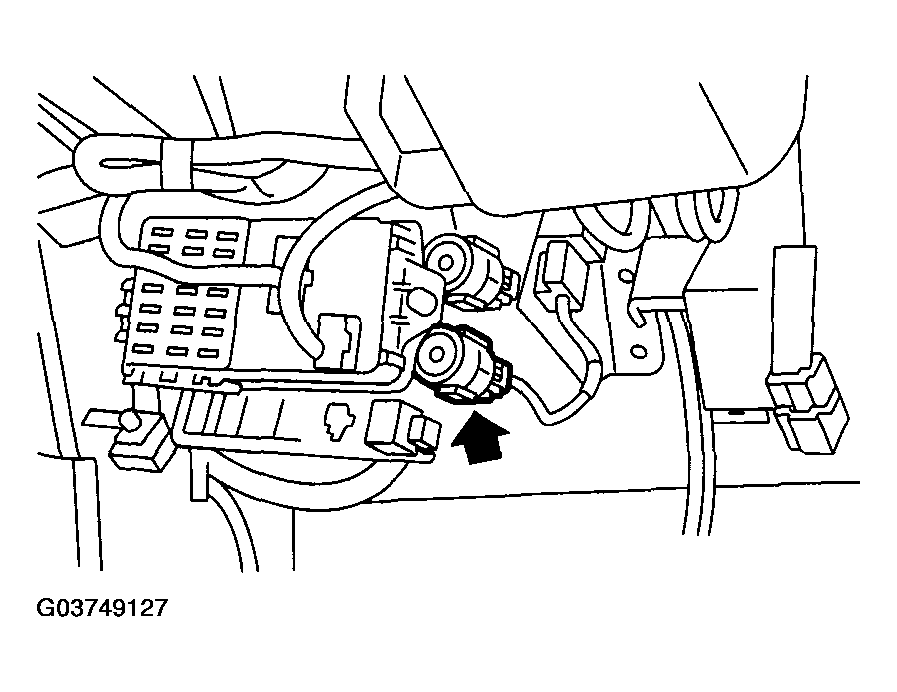

    Fig 2: Removing Main Relay From The Bracket
    G03749127Courtesy of SUBARU OF AMERICA, INC.
