Center Structure
Center Structure

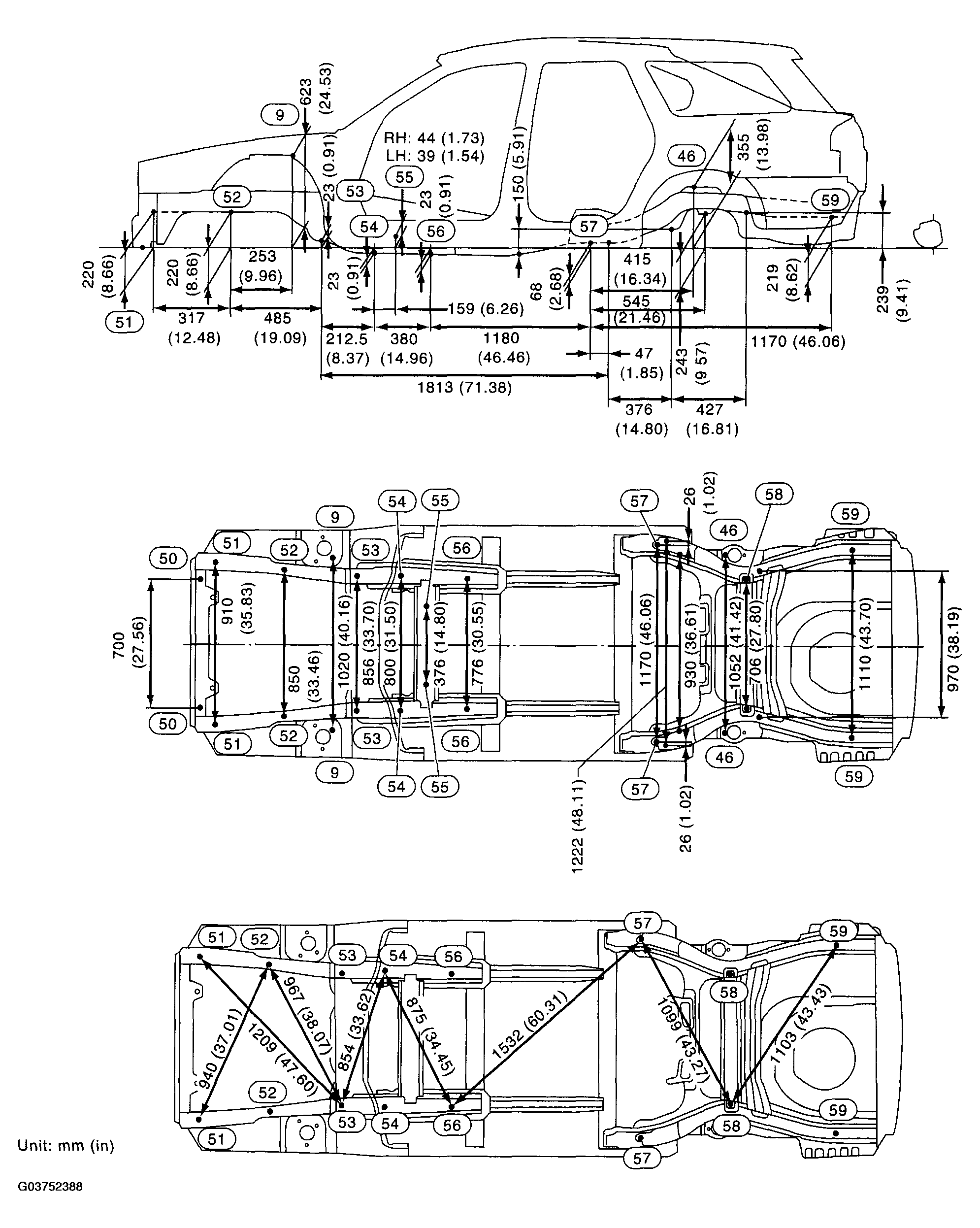

Fig 1: Identifying Center Structure
Courtesy of SUBARU OF AMERICA, INC.
MEMO:
Courtesy of SUBARU OF AMERICA, INC.
