Wastegate Control Solenoid Valve: Installation

Install in the reverse order of removal.

Tightening torque:

6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

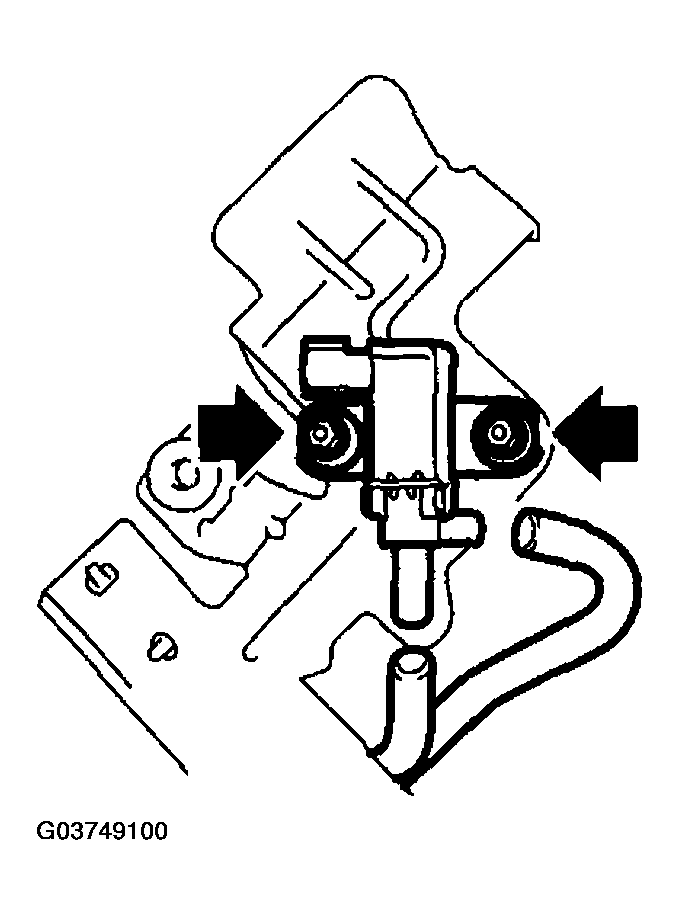

Fig 1: Installing Wastegate Control Solenoid Valve

Courtesy of SUBARU OF AMERICA, INC.
