Engine Controls - Engine (Diagnostics) (H4SO): Electrical Component Location: Location: Engine

Control module

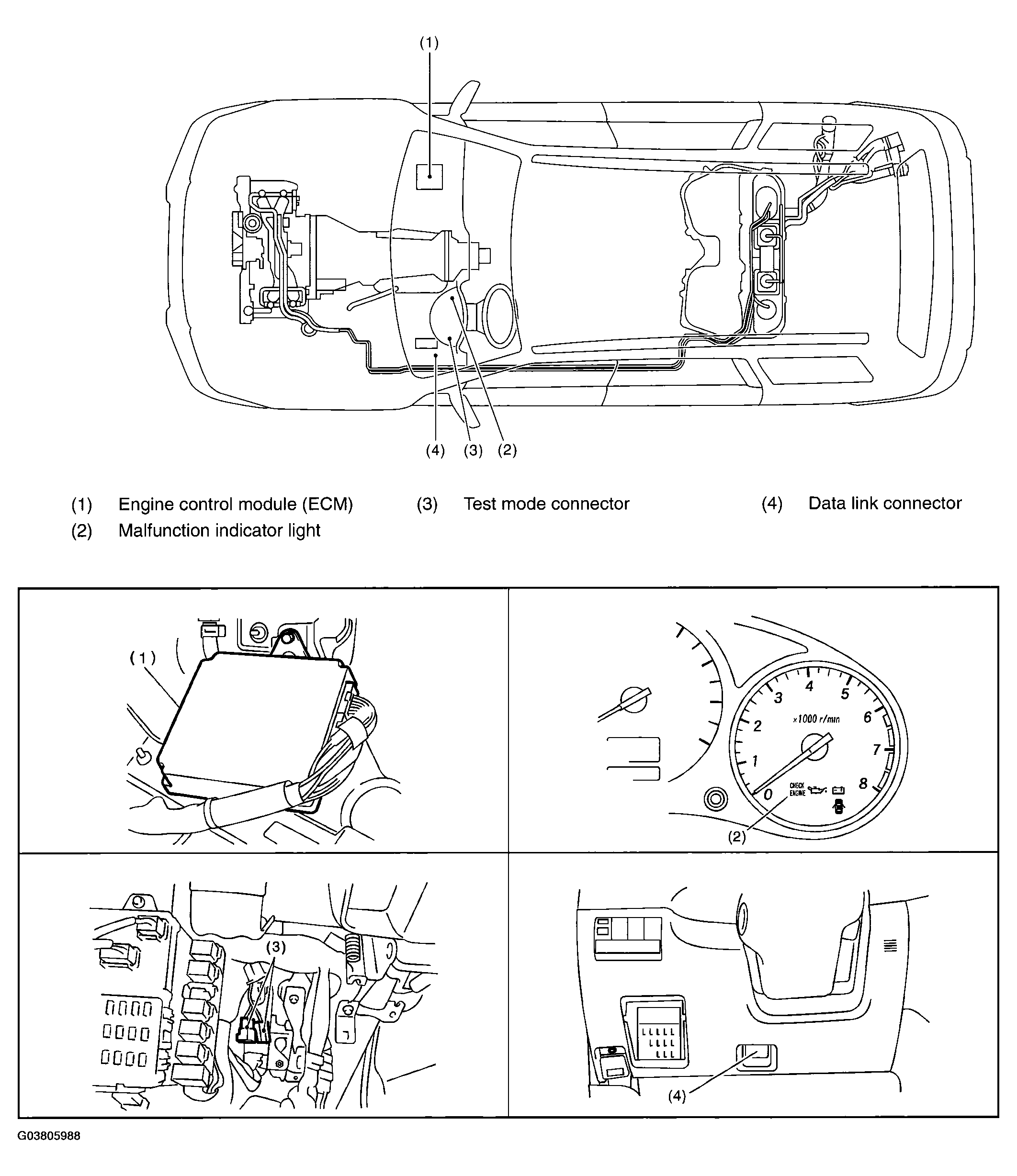

Fig 1: Identifying Engine Module Electrical Components Location
Courtesy of SUBARU OF AMERICA, INC.
Sensor

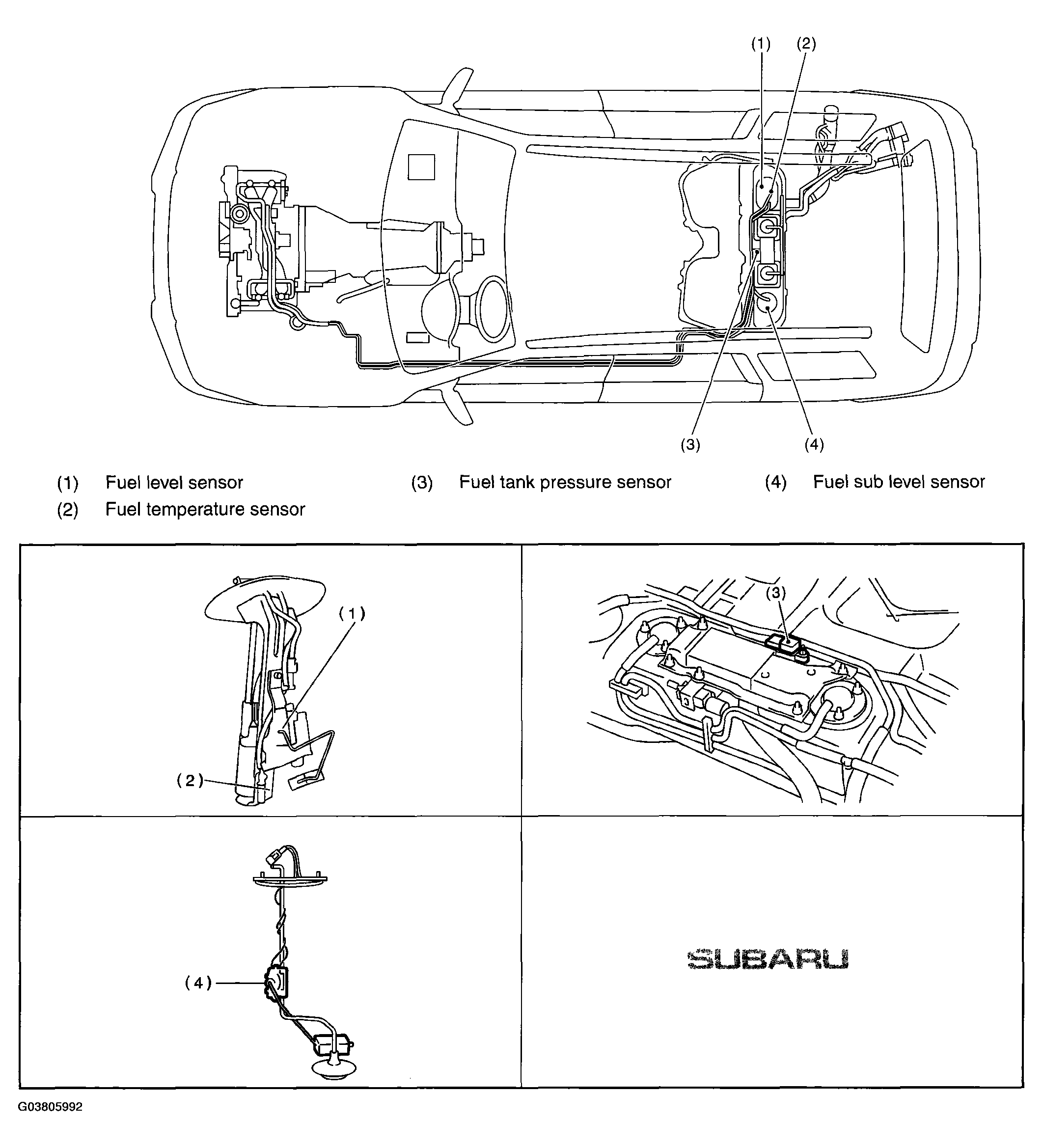

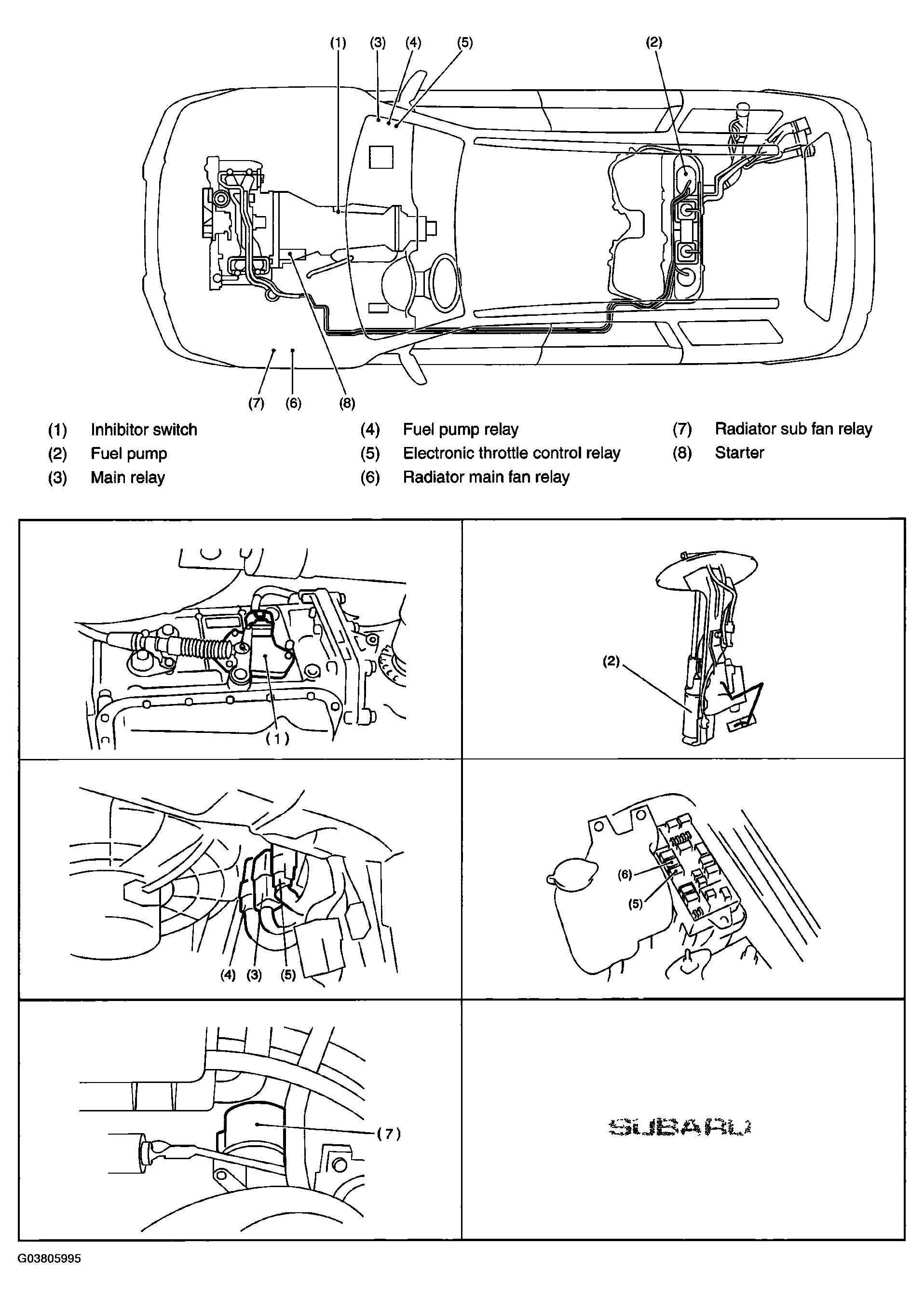

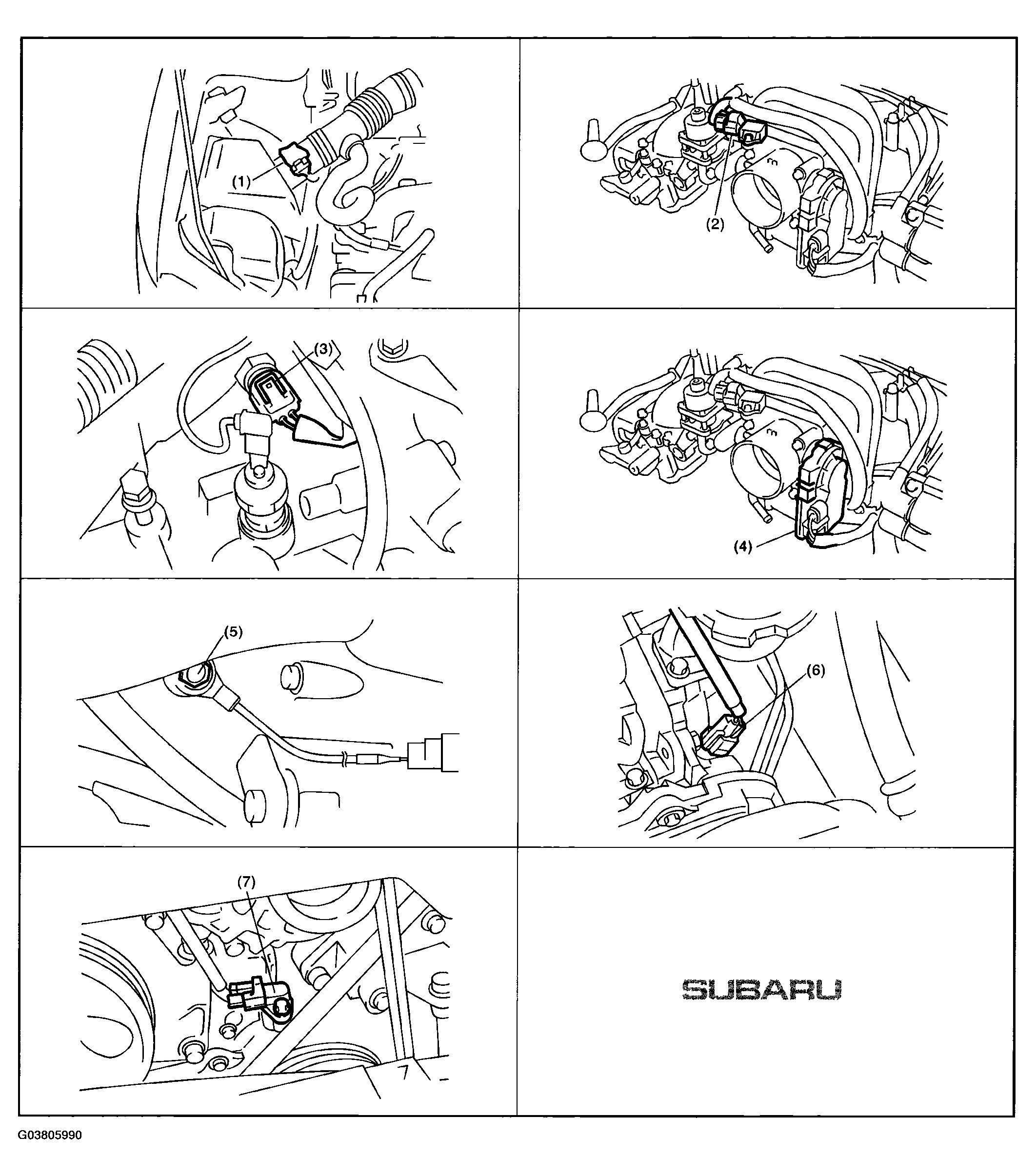

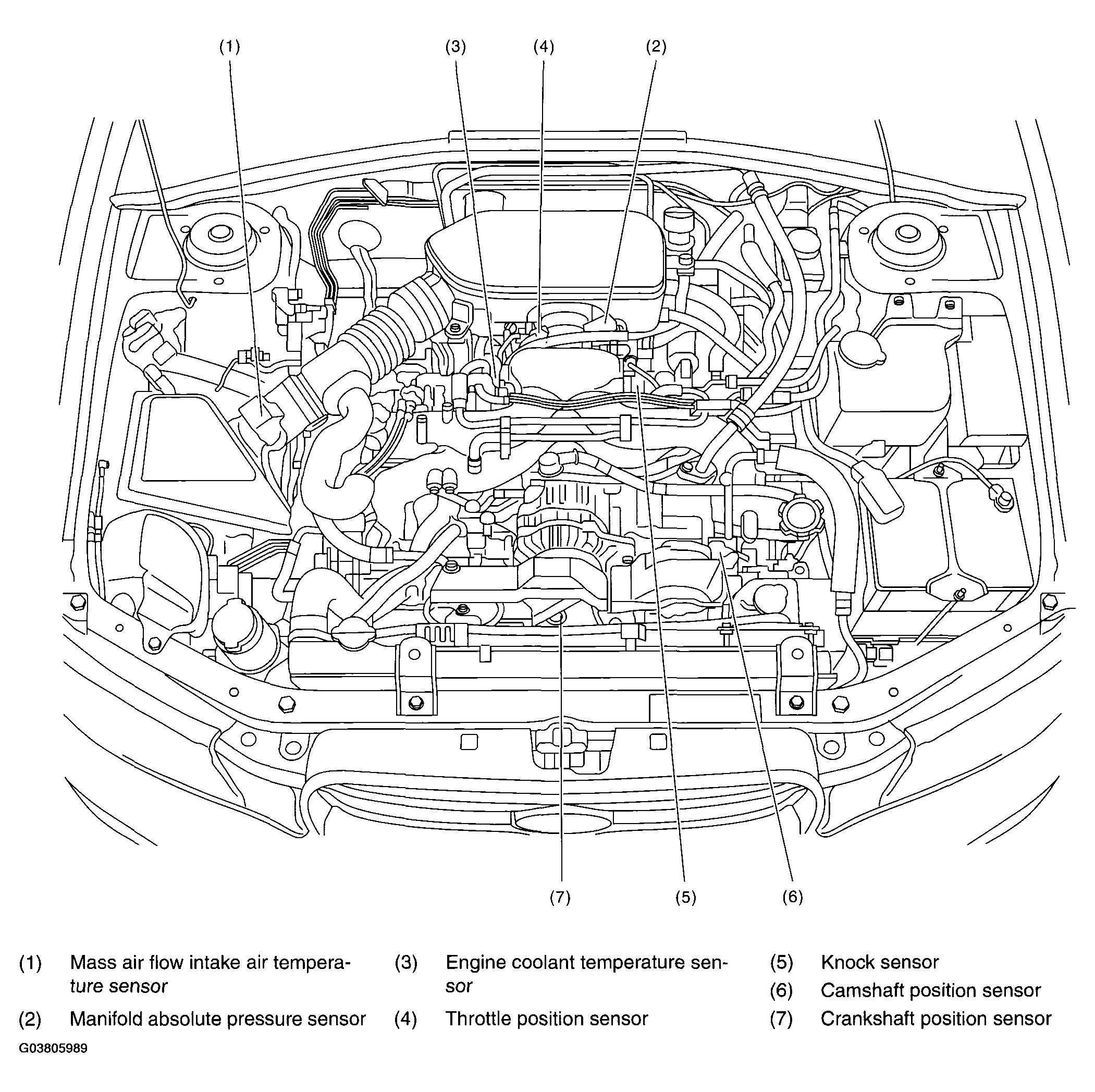

Fig 2: Identifying Sensors Location (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Sensors Location (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Sensors Location (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Sensors Location (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Solenoid valve, emission control system parts and ignition system parts

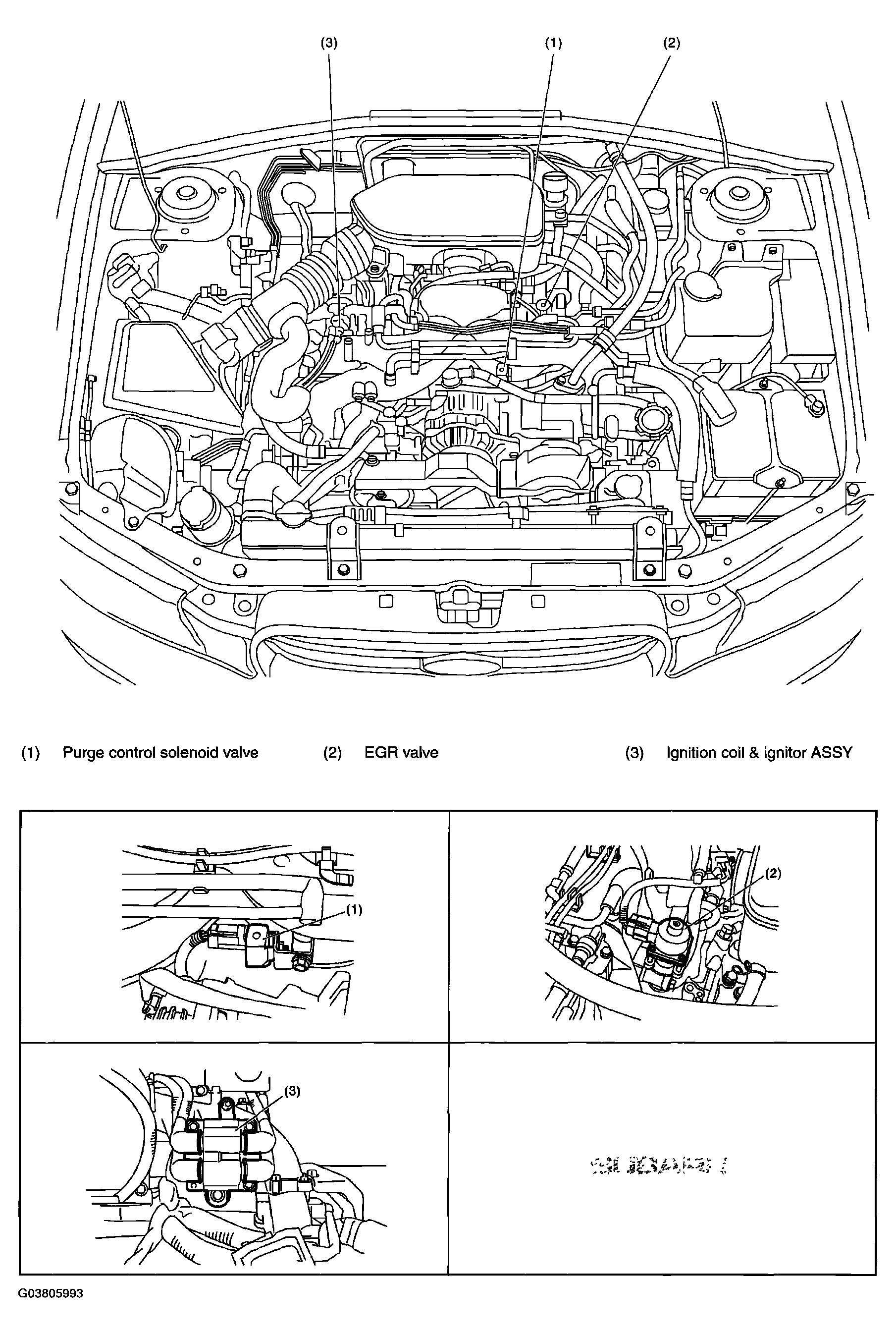

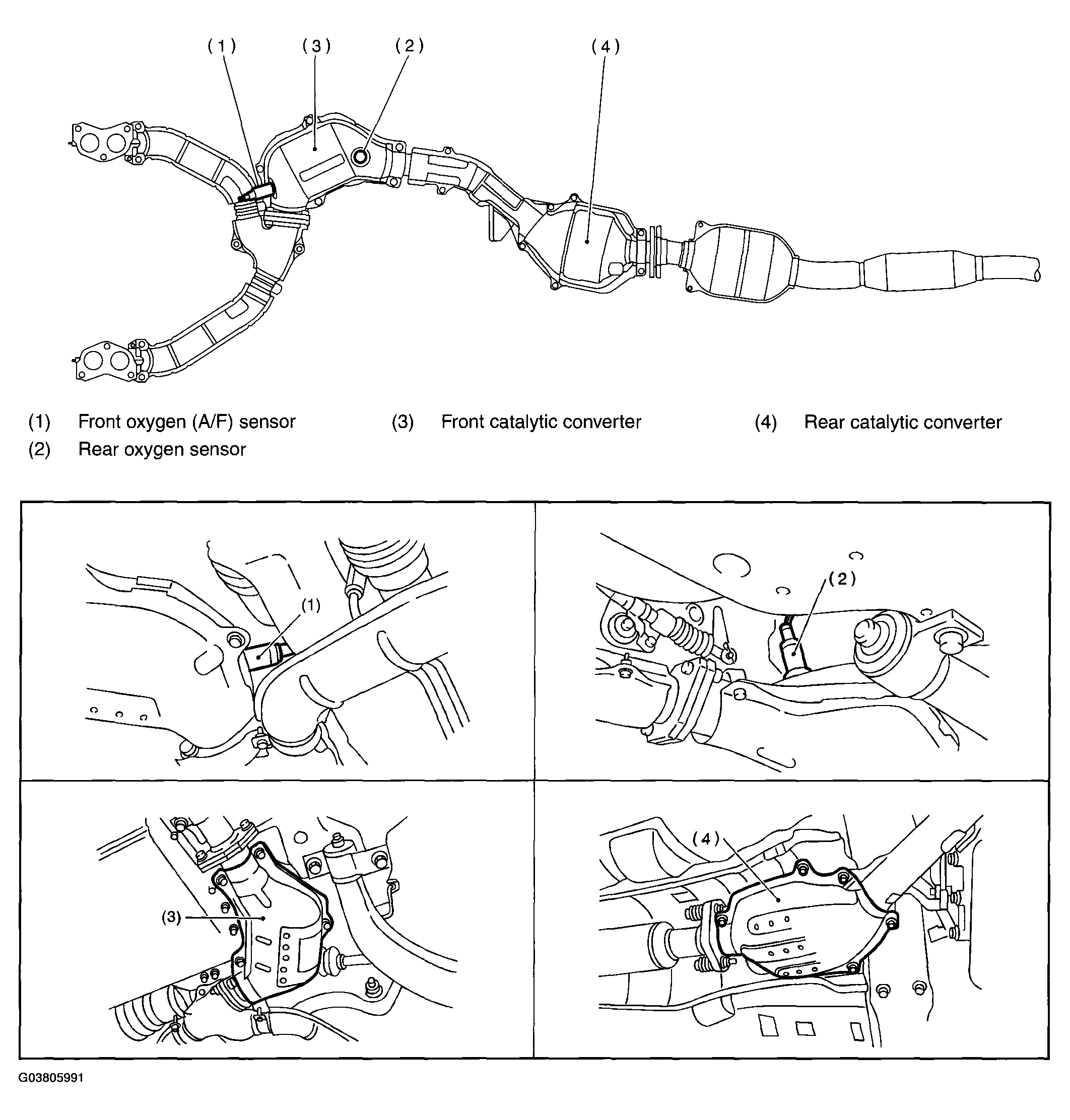

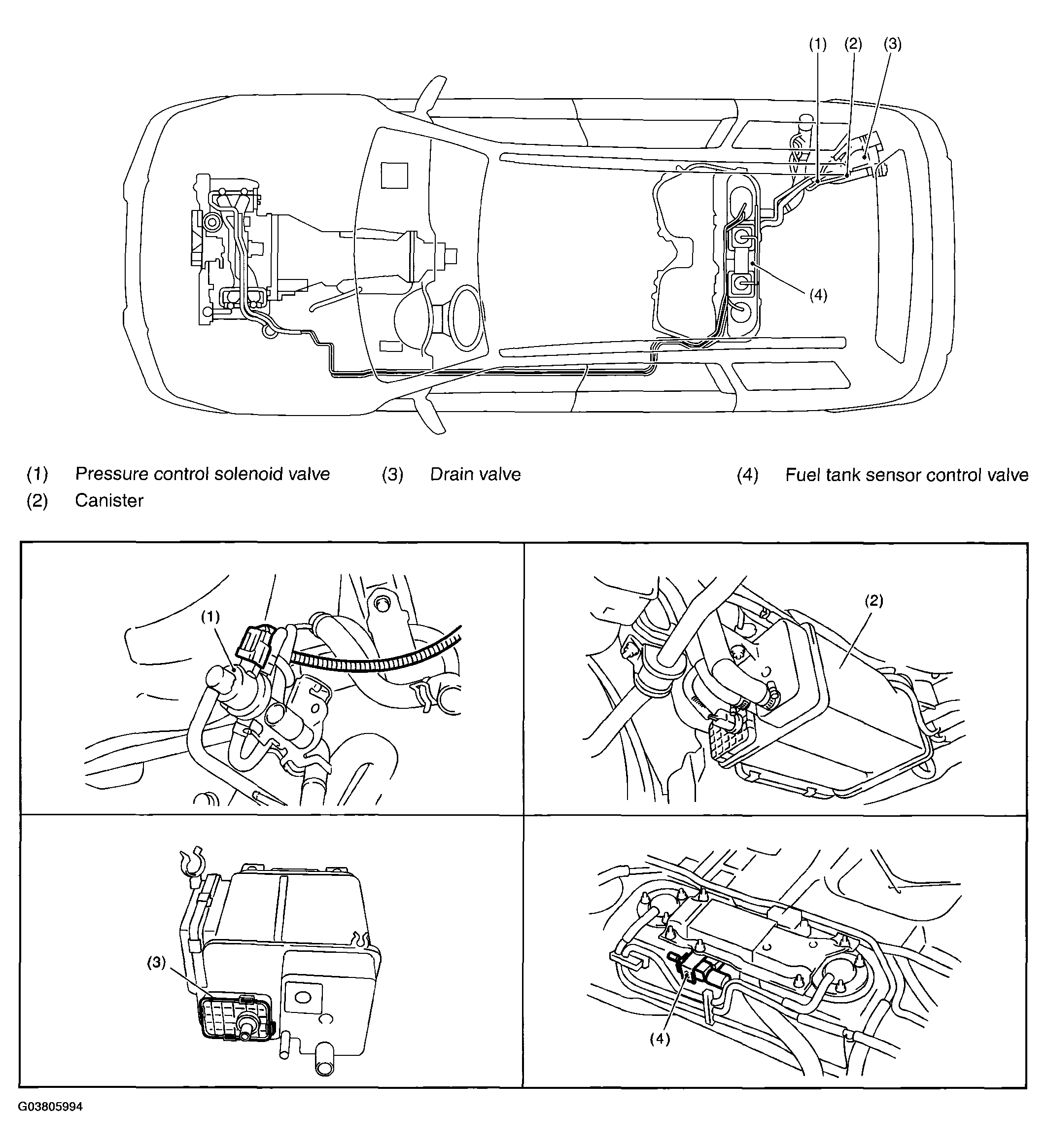

Fig 6: Identifying Solenoid Valve, Emission Control System And Ignition System Parts (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Solenoid Valve, Emission Control System And Ignition System Parts (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Solenoid Valve, Emission Control System And Ignition System Parts (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
