Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC) (Diagnostics)
›
Control Module I/O Signal
›
Wiring Diagram

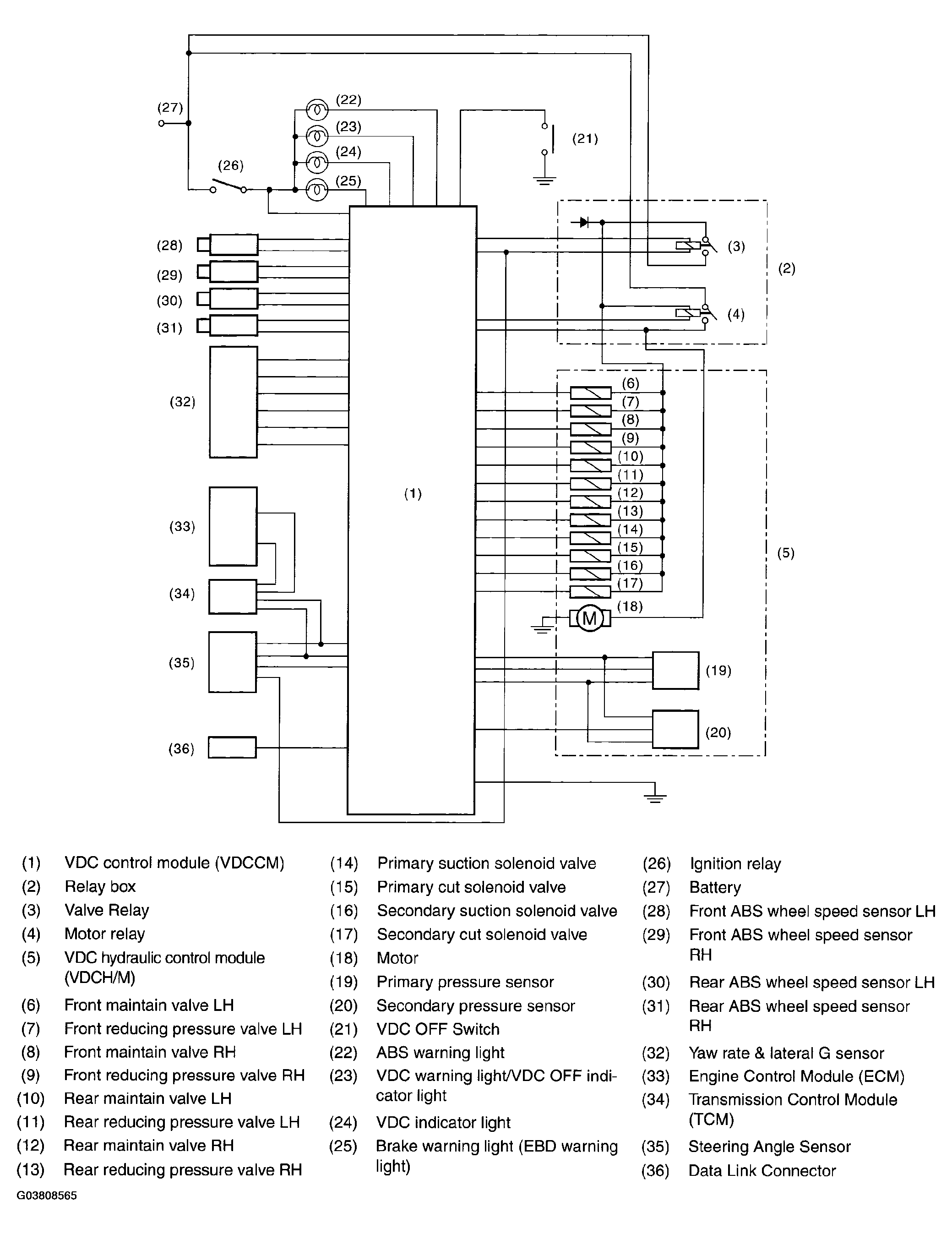

Control Module I/O Signal: Wiring Diagram
Fig 1: Identifying Control Module I/O Signal Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
