Steering Angle Sensor: Removal

Disconnect the ground cable from battery.

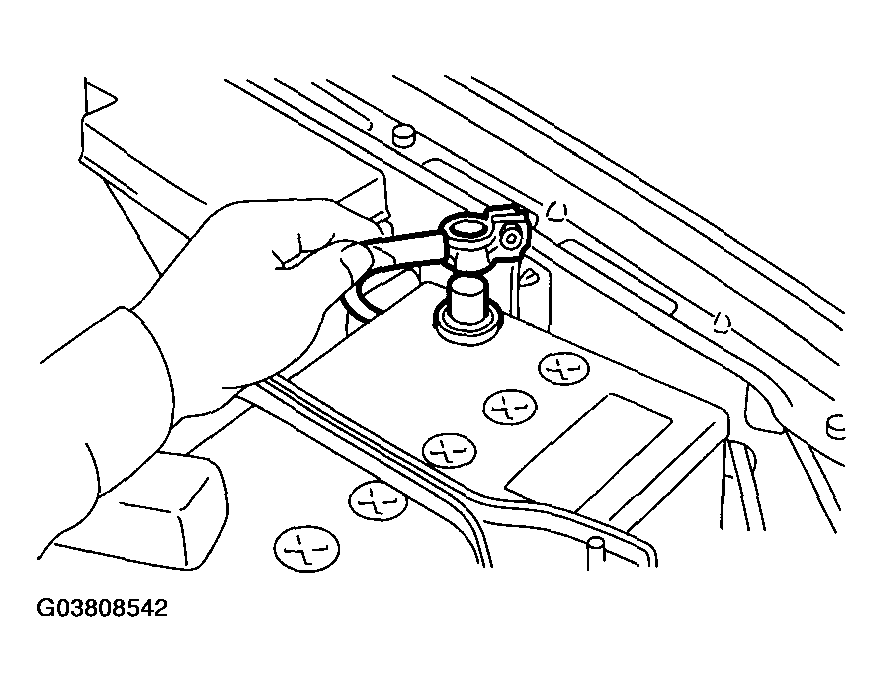

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the airbag module. < Ref. to REMOVAL , Driver's Airbag Module. >
WARNING: Always refer to "AIRBAG SYSTEM " before performing the airbag module service.
< Ref. to CAUTION , General Description. >
Remove the steering wheel nut.
NOTE: Steering wheel must be removed at the straight ahead position.

Fig 2: Removing Steering Wheel Nut
Courtesy of SUBARU OF AMERICA, INC.
Then draw out the steering wheel from shaft using steering puller.

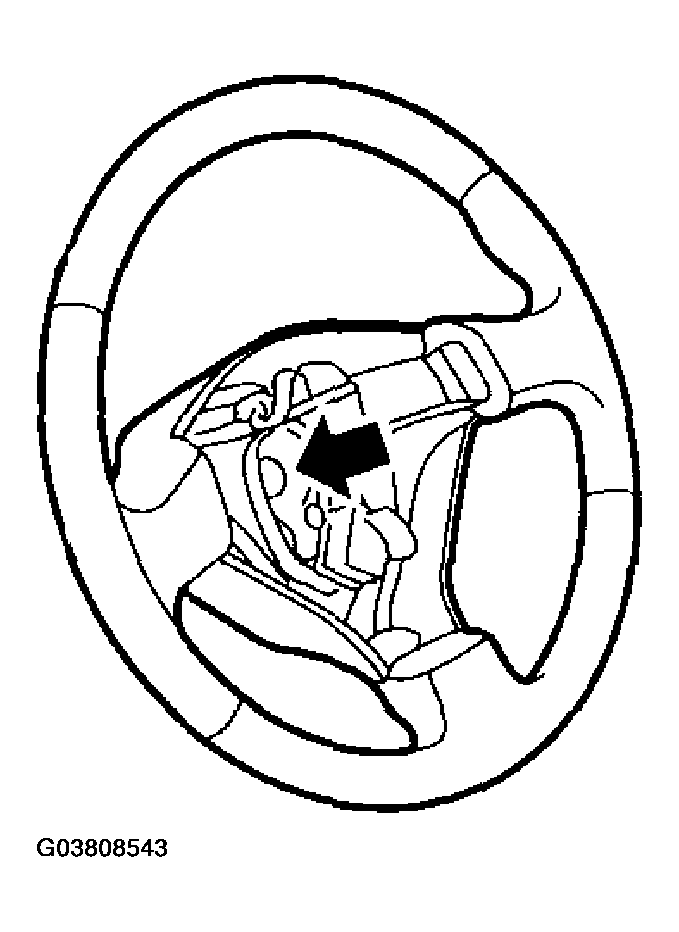

Fig 3: Identifying Draw Out Steering Wheel From Shaft Using Steering Puller
Courtesy of SUBARU OF AMERICA, INC.
Remove the screw securing steering column lower cover.

Fig 4: Removing Screw Securing Steering Column Lower Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the two screws securing steering column upper cover.
Release the lock of harness band and disconnect the connector of steering angle sensor.

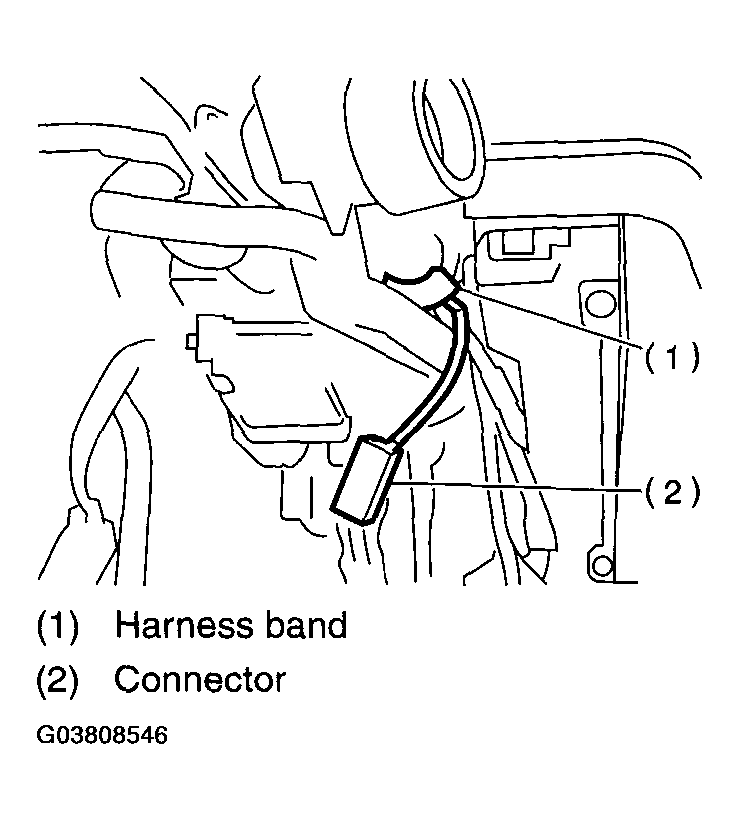

Fig 5: Disconnecting Connector Of Steering Angle Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold roll connector and steering angle sensor onto steering column.

Fig 6: Removing Bolts Which Hold Roll Connector And Steering Angle Sensor Onto Steering Column
Courtesy of SUBARU OF AMERICA, INC.
Remove the roll connector and steering angle sensor.

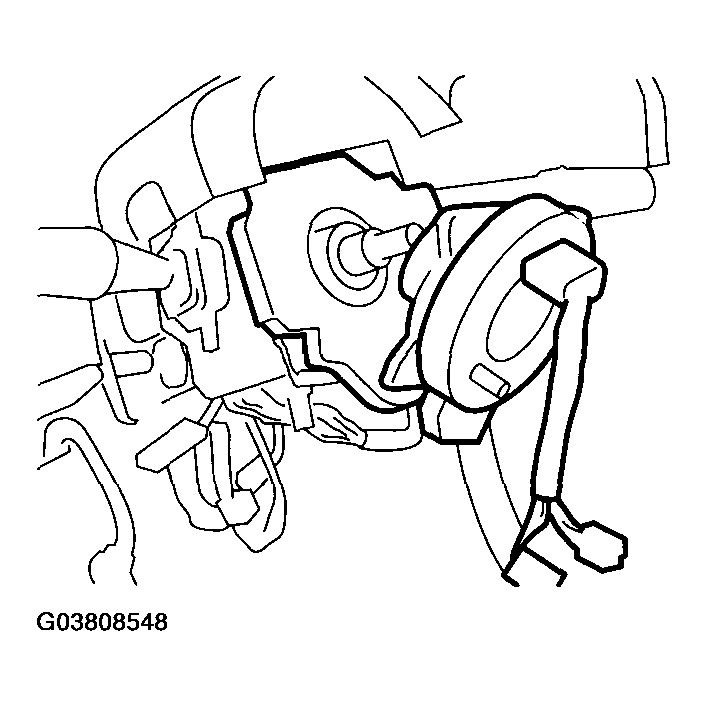

Fig 7: Removing Roll Connector And Steering Angle Sensor
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Do not turn the steering angle sensor as it's center position has been recognized by VDCCM.
