RH Side

  1. Disconnect the ground cable from battery.

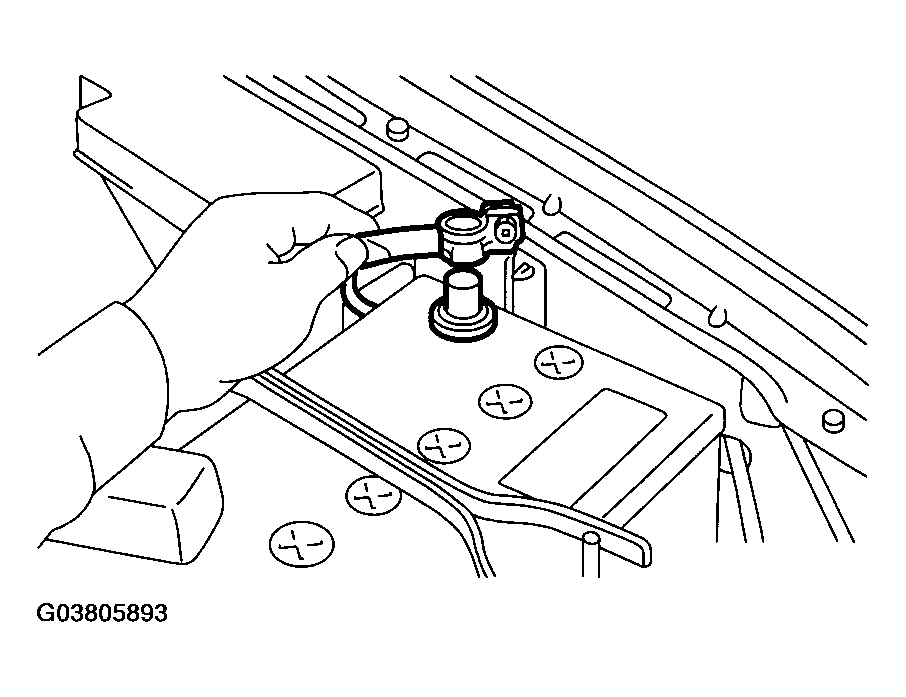

    Fig 1: Disconnecting Ground Cable From Battery
    G03805893Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air cleaner case. < Ref. to REMOVAL , Air Cleaner Case. >
  3. Remove the spark plug cords by pulling the boot. (Do not pull the cord itself.)

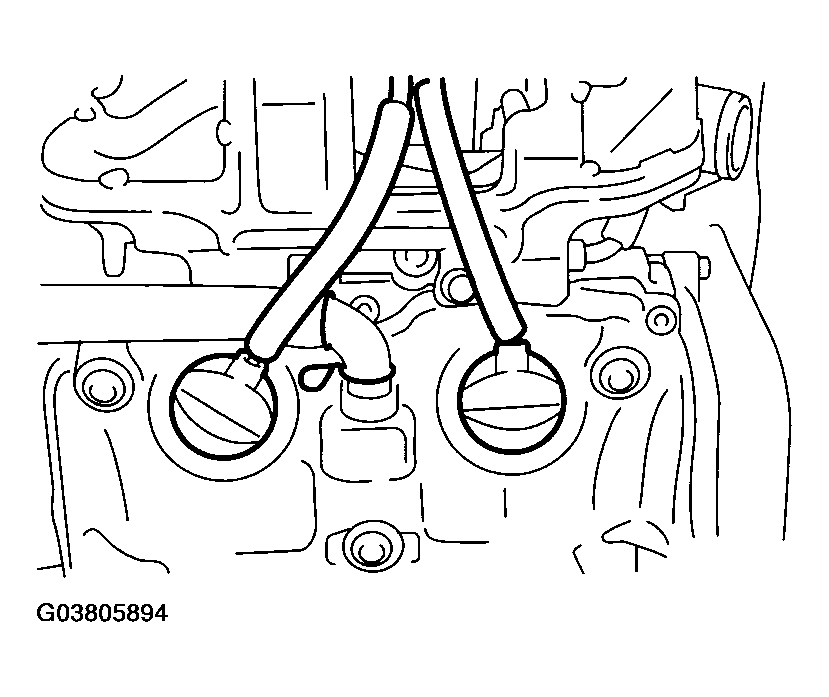

    Fig 2: Removing The Spark Plug Cords By Pulling The Boot
    G03805894Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the spark plug with a spark plug socket.

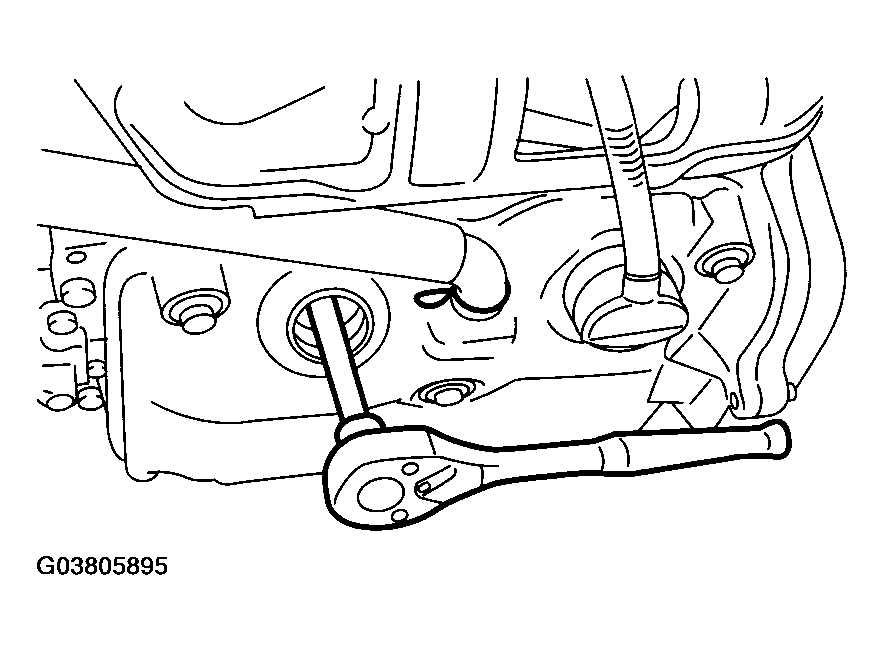

    Fig 3: Removing Spark Plug With Spark Plug Socket
    G03805895Courtesy of SUBARU OF AMERICA, INC.
