Sedan Model

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the trunk room side trim. < Ref. to REMOVAL , Trunk Room Trim. >
  3. Remove the four nuts, and then detach the rear combination light after disconnecting the connector.

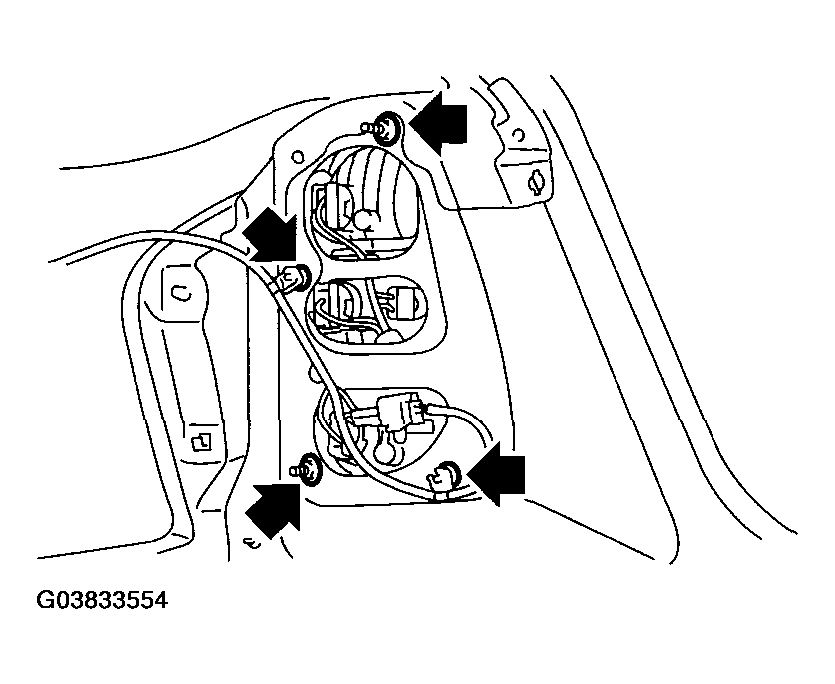

Fig 1: Removing Four Nuts
G03833554Courtesy of SUBARU OF AMERICA, INC.
