Steering Angle

INSPECTION
1. Place the vehicle on a turning radius gauge.
2. While depressing the brake pedal, turn the steering wheel fully to the right and left. With the steering wheel held at each fully turned position, measure both the inner and outer wheel steering angle.
  Steering angle:

  Inner wheel

  36°24'+/-1°30'

  Outer wheel

  32°+/-1°30'
ADJUSTMENT
1. Turn the tie-rod to adjust steering angle of both inner and outer wheels.
2. Check the toe-in.
  NOTE: Correct the boot if it is twisted.

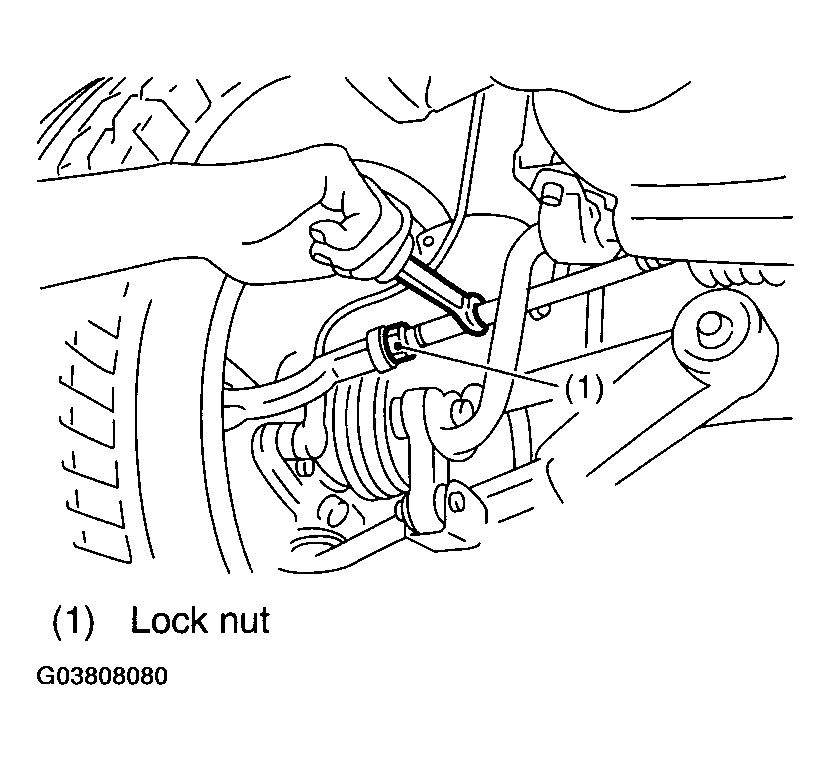

  Fig 1: Adjusting Inner And Outer Wheels Steering Angle
  Courtesy of SUBARU OF AMERICA, INC.
