Front Hood Lock Assembly: Removal

  1. Open the hood.
  2. Remove the front grille.
  3. Remove the bolt. Remove the hood lock assembly.
  4. Remove the release cable from lock assembly.

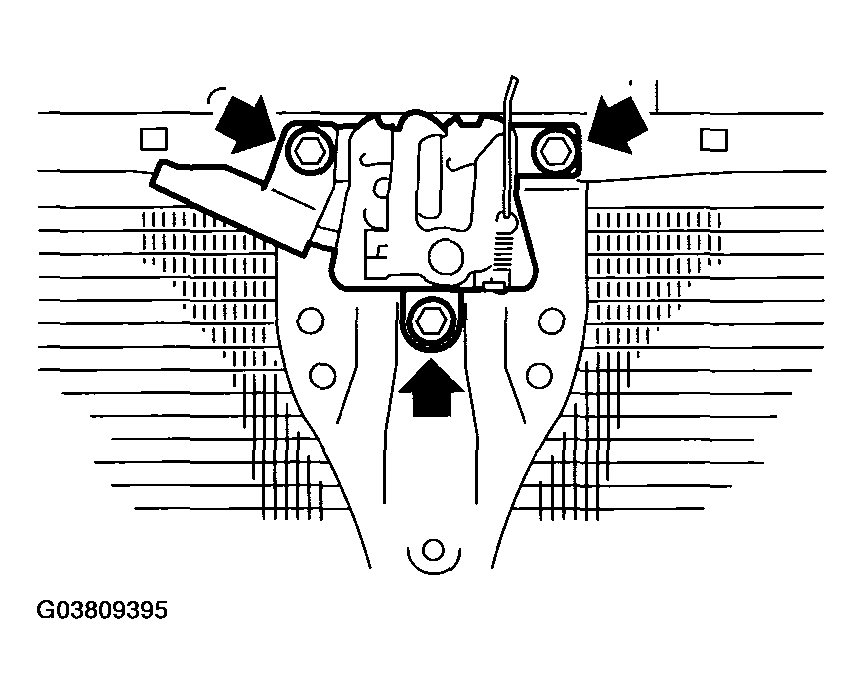

    Fig 1: Removing The Release Cable From Lock Assembly
    G03809395Courtesy of SUBARU OF AMERICA, INC.
