General Description
›
Components
›
Security System
Security System

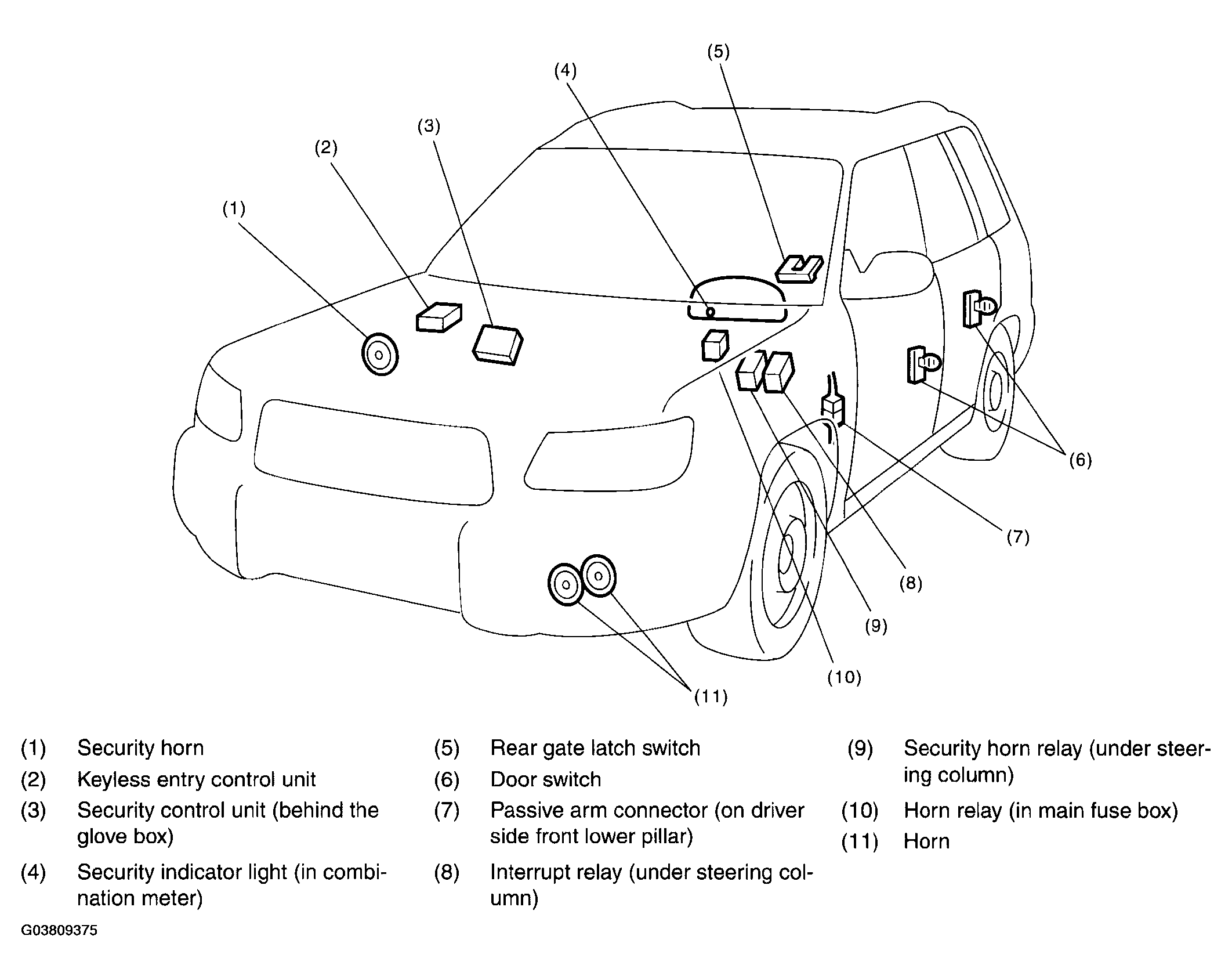

Fig 1: Identifying Security System Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
