Abs Control Module And Hydraulic Control Unit (Abs Cm & H/U)
Abs Control Module And Hydraulic Control Unit (Abs Cm & H/U)

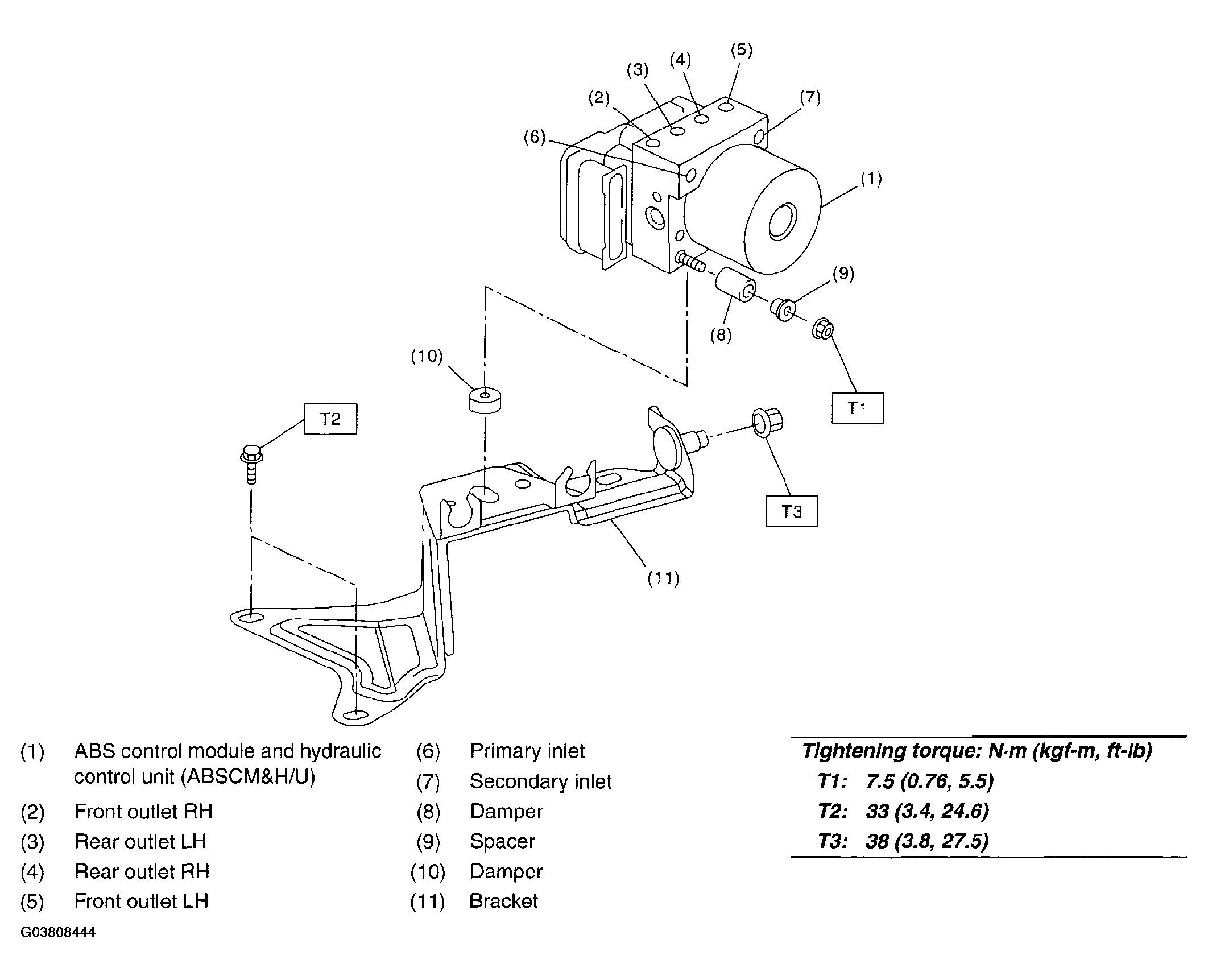

Fig 1: Exploded View Of ABS Control Module And Hydraulic Control Unit
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
