Brakes - Abs: General Description: Components: Sensor

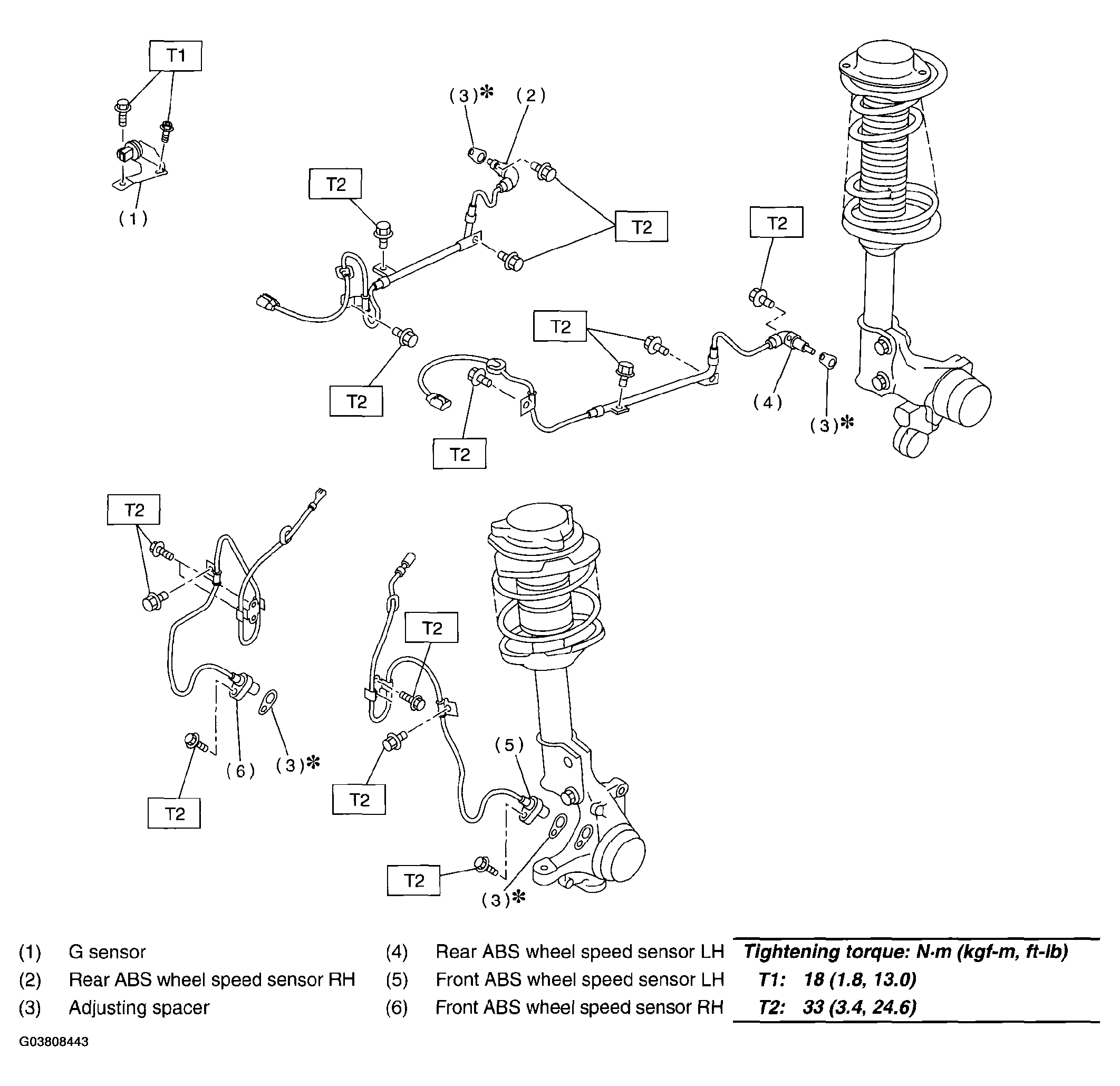

Fig 1: Identifying Sensor Components
G03808443Courtesy of SUBARU OF AMERICA, INC.
