Switch Assembly

Be sure there is continuity between the terminals S and M, and between terminal S and ground. Use a circuit tester (set in "ohm").

Also check to be sure there is no continuity between terminal M and B.

Terminal/Specified resistance:

S - M/Less than 1ohm

S - Ground/Less than 1ohm

M - B/More than 1 Mohm

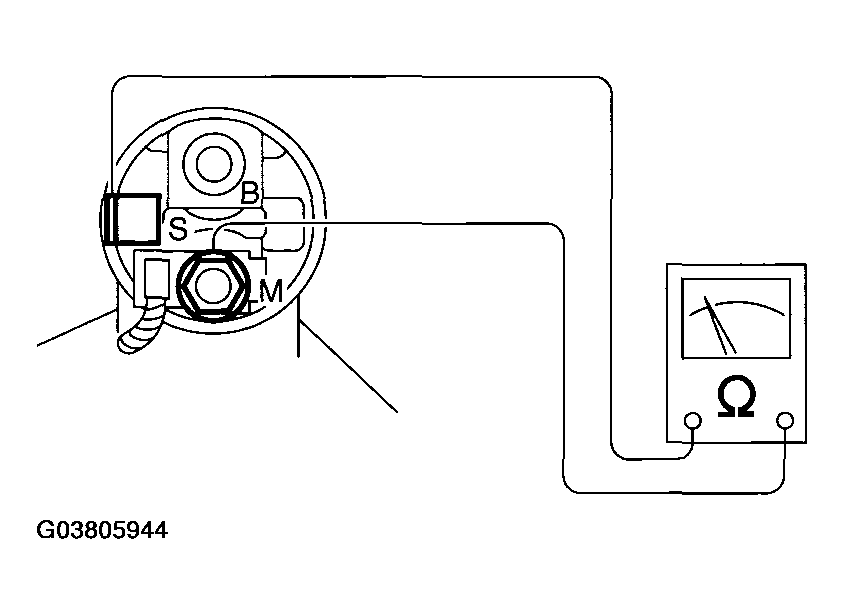

Fig 1: Measuring Continuity Between Switch Assembly Terminal

Courtesy of SUBARU OF AMERICA, INC.
