Fuel Damper Valve: Removal

  1. Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , Procedure, Fuel. >
  2. Remove the fuel damper valve from the fuel delivery line (A) and fuel return line (B).

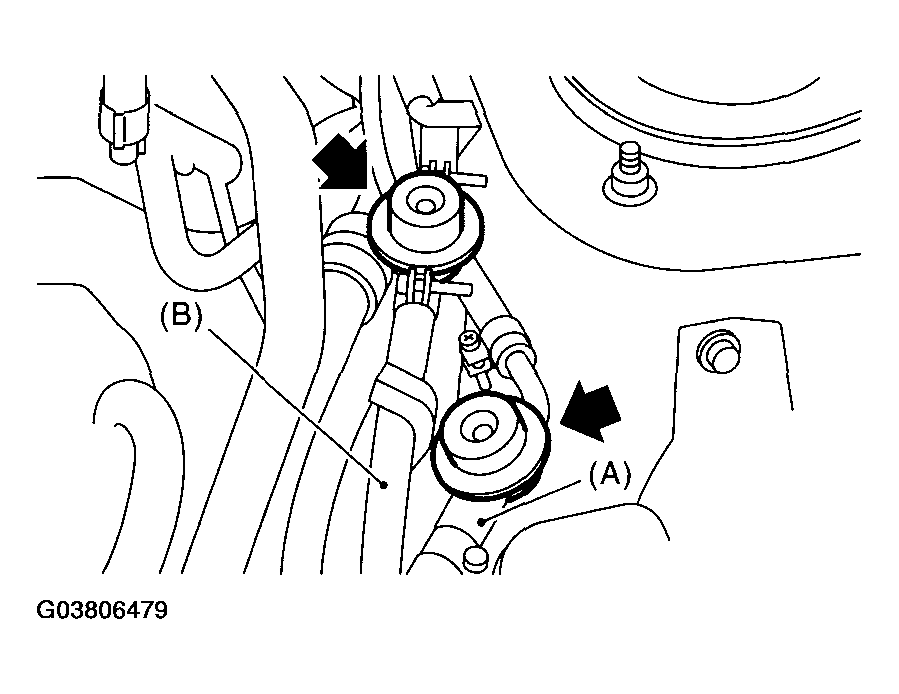

    Fig 1: Removing Fuel Damper Valve From Fuel Delivery Line
    G03806479Courtesy of SUBARU OF AMERICA, INC.
