RH Side

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , Procedure, Fuel. >
Open the fuel filler flap lid and remove the fuel filler cap.
Disconnect the ground cable from battery.

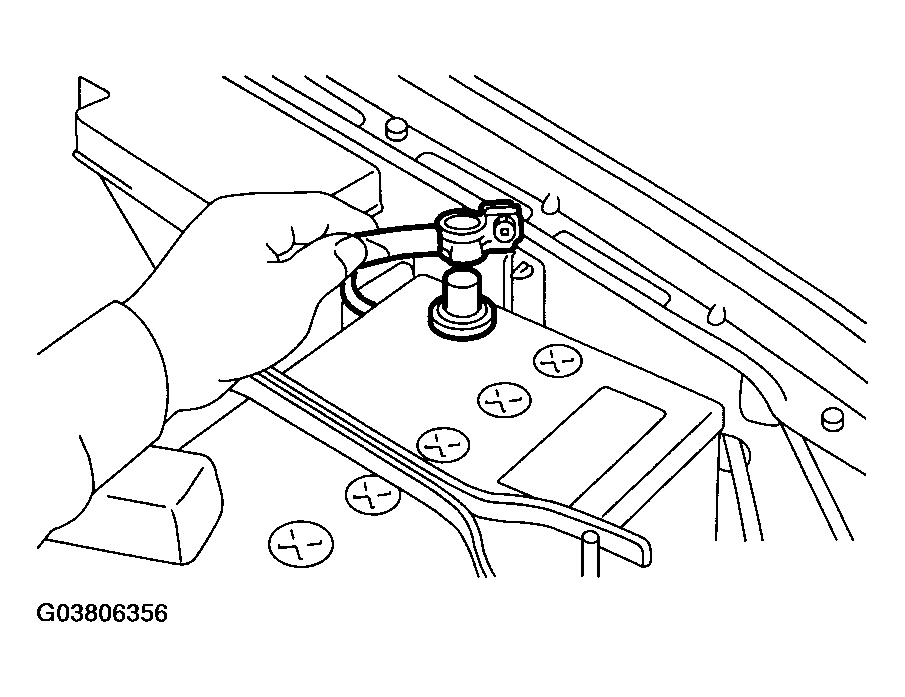

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe protector RH.

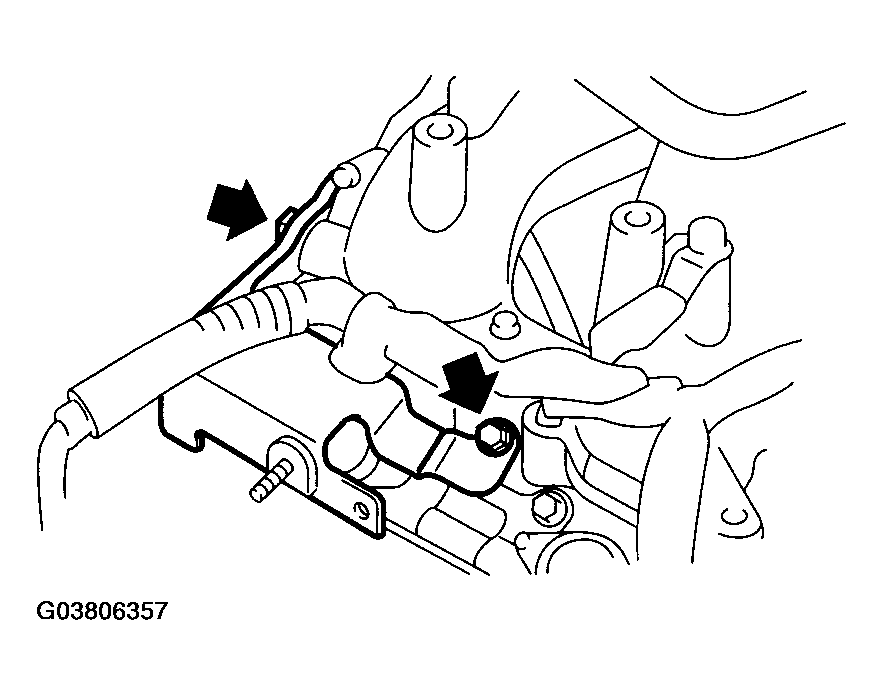

Fig 2: Removing Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel injector.
Remove the screw and remove the fuel injector.

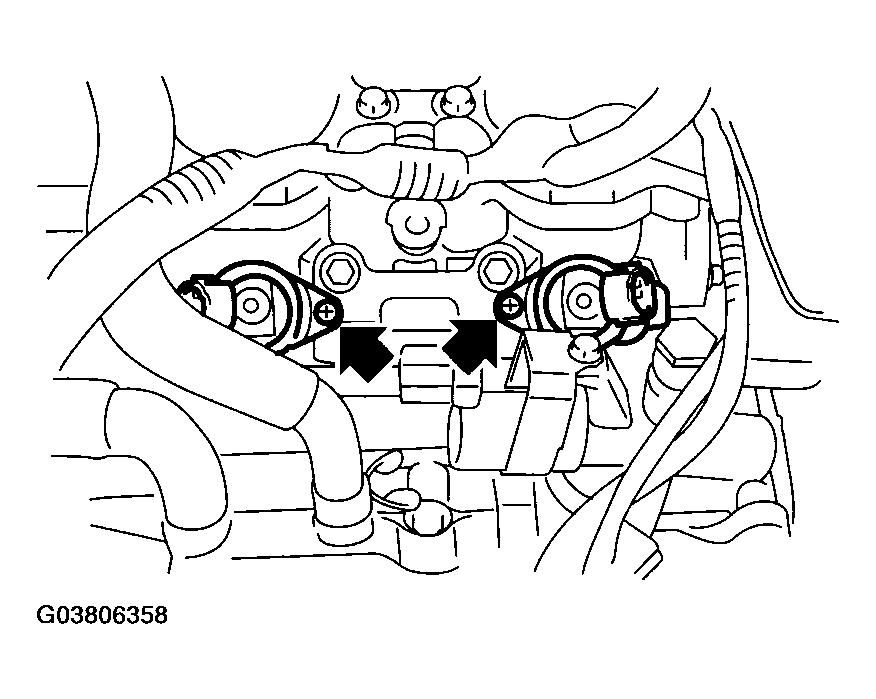

Fig 3: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
