Fuel Pump Relay: Removal

Disconnect the ground cable from battery.

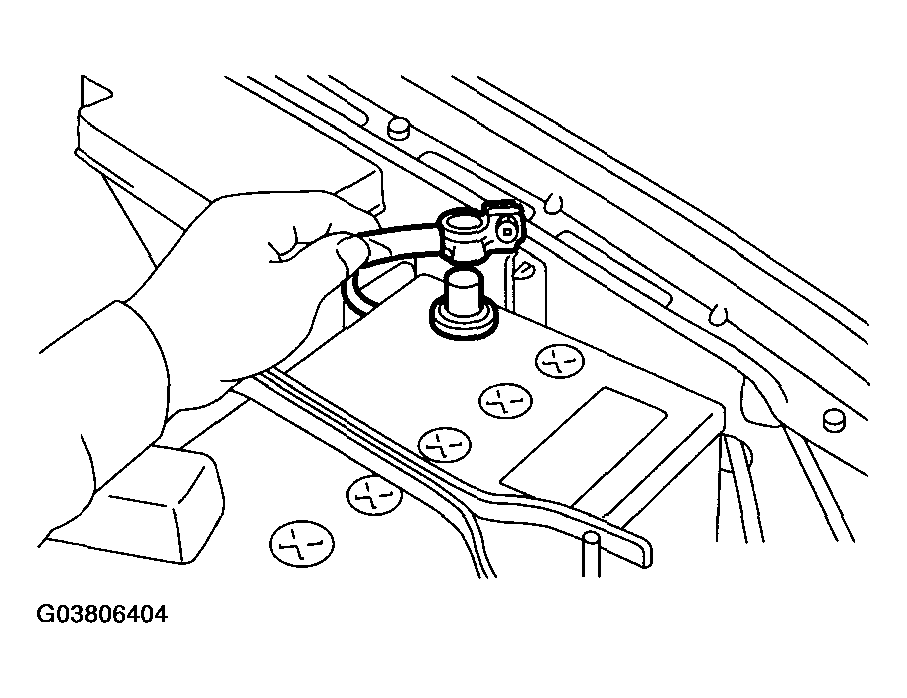

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box. < Ref. to REMOVAL , Glove Box. >
Remove the bolt which holds fuel pump relay bracket on the body.
Disconnect the connector from the fuel pump relay.

Fig 2: Disconnecting Connector From Fuel Pump Relay
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pump relay from the mounting bracket.
