General Description
›
Components
›
Fuel Tank
Fuel Tank

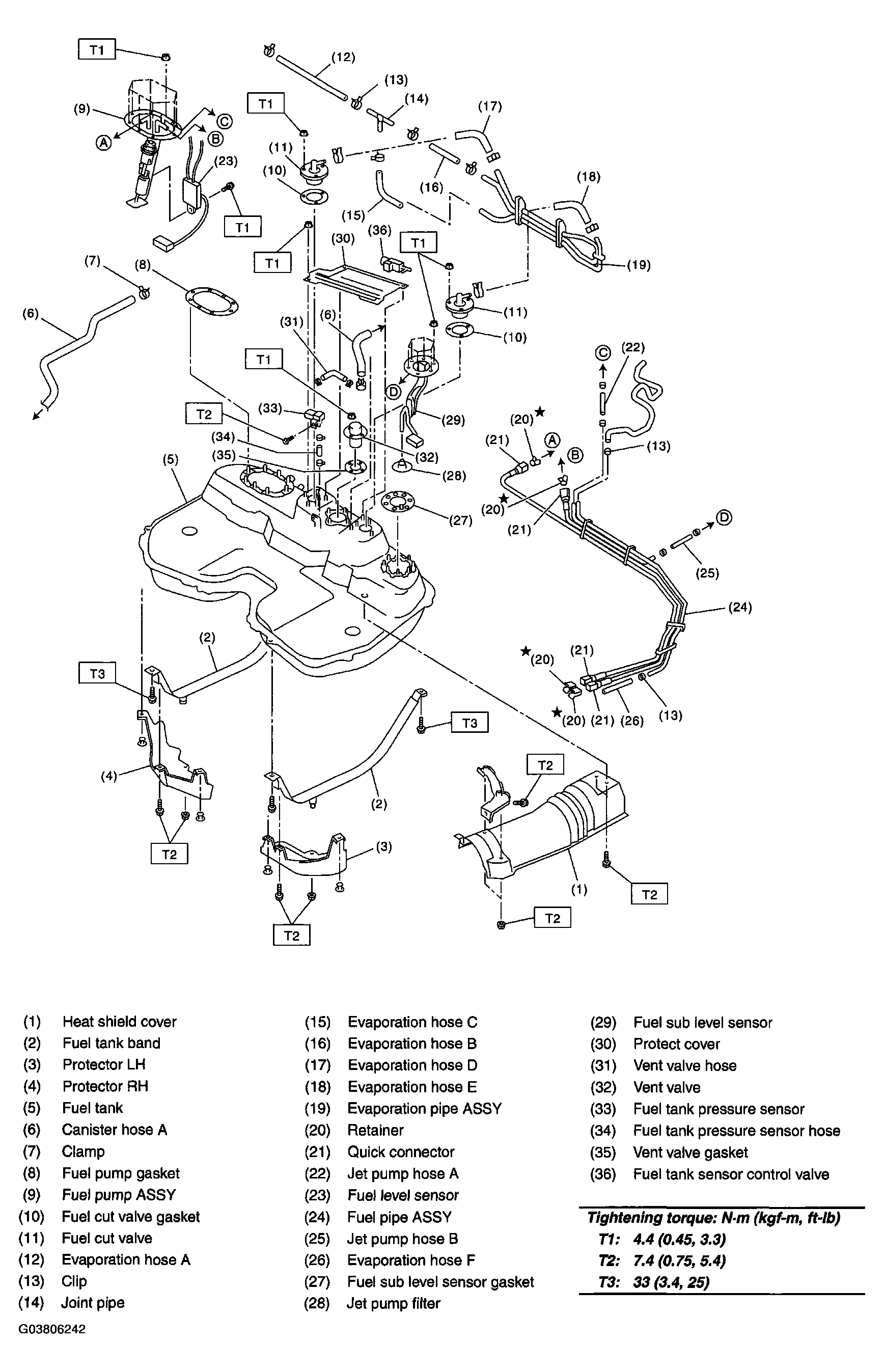

Fig 1: Fuel Tank Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
