Throttle Body: Installation

Install in the reverse order of removal.

NOTE: Always use a new gasket.

Tightening torque:

8 N.m (0.8 kgf-m, 5.8 ft-lb)

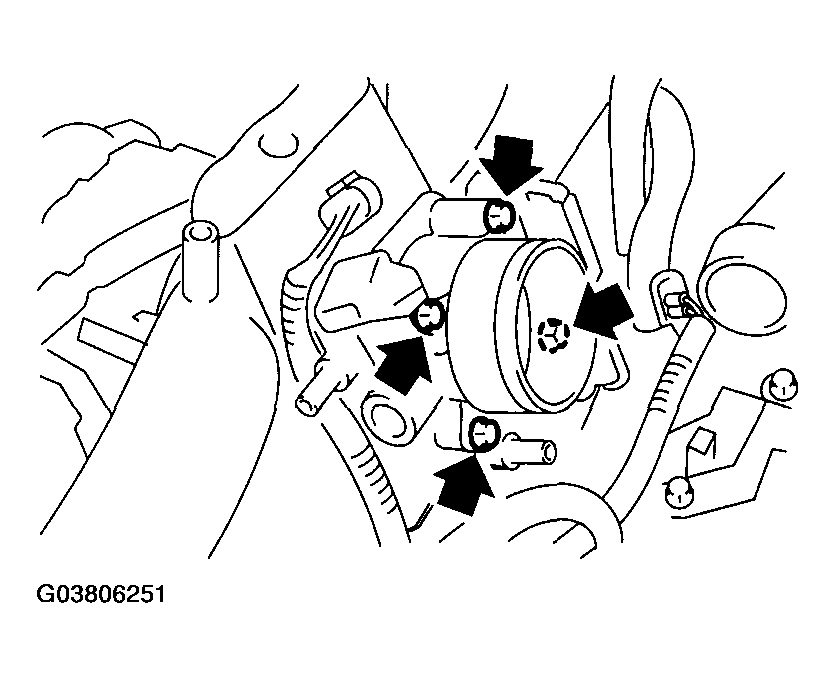

Fig 1: Locating Throttle Body Bolts

Courtesy of SUBARU OF AMERICA, INC.
