Ignition (H4DOTC): General Description: Components

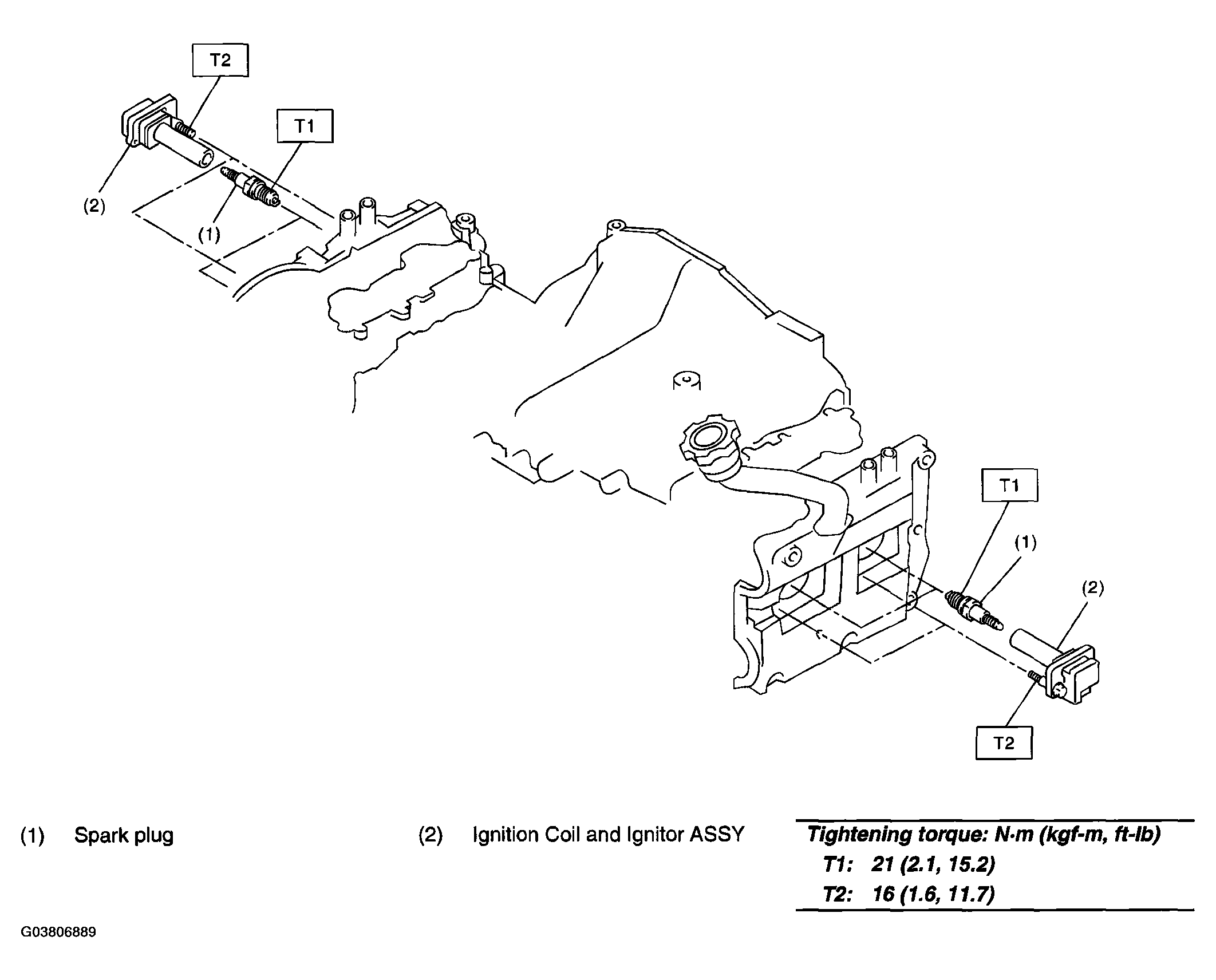

Fig 1: Ignition Replacement Components With Torque Specifications
G03806889Courtesy of SUBARU OF AMERICA, INC.
