LH Side

Disconnect the battery cables, and then remove the battery and battery carrier.

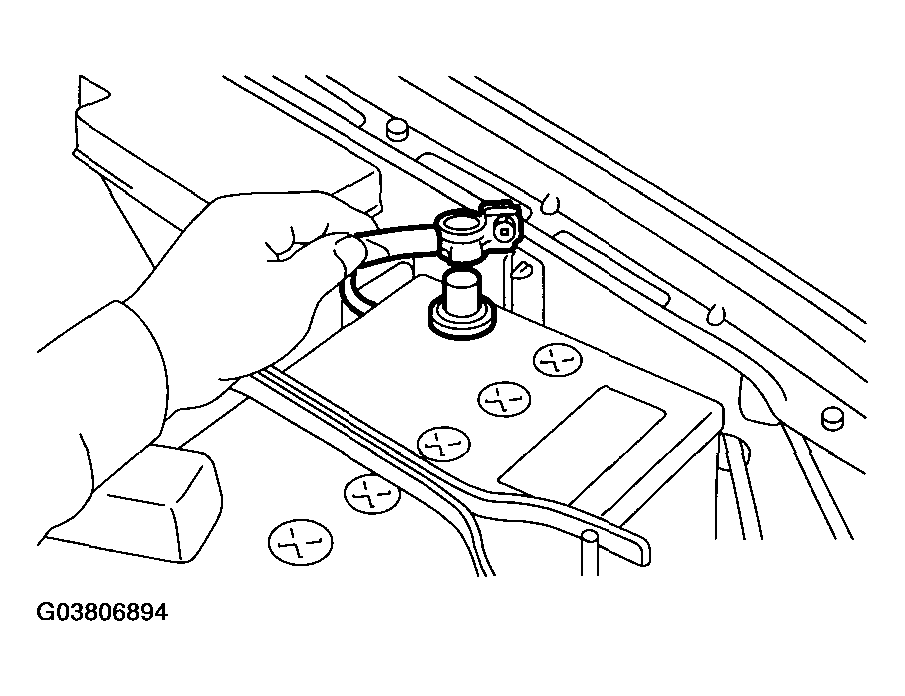

Fig 1: Disconnecting Battery Cables
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the washer motor connector.

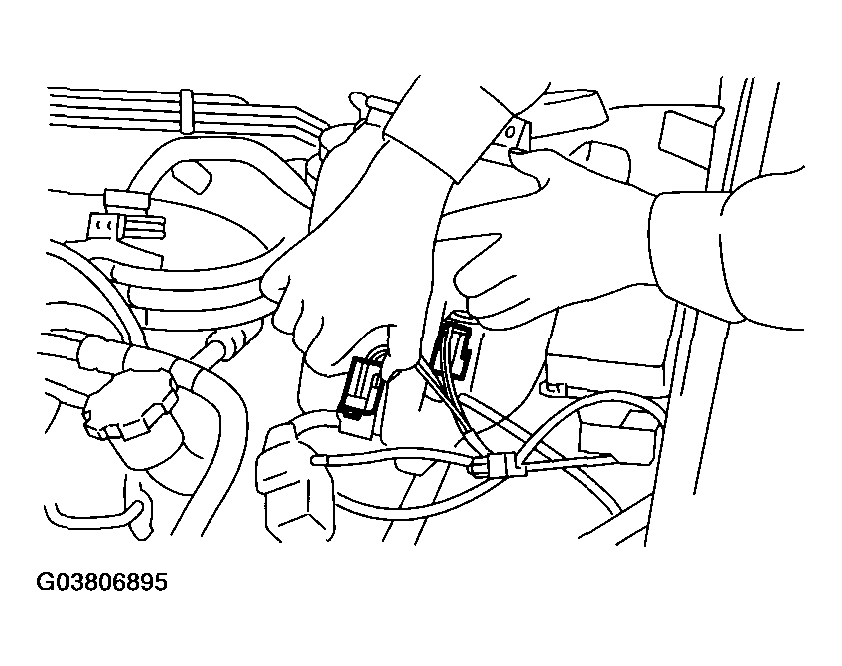

Fig 2: Disconnecting Washer Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the rear window glass washer hose from washer motor, then plug connection with a suitable cap.
Remove the two bolts which hold washer tank, then take the tank away from working area.

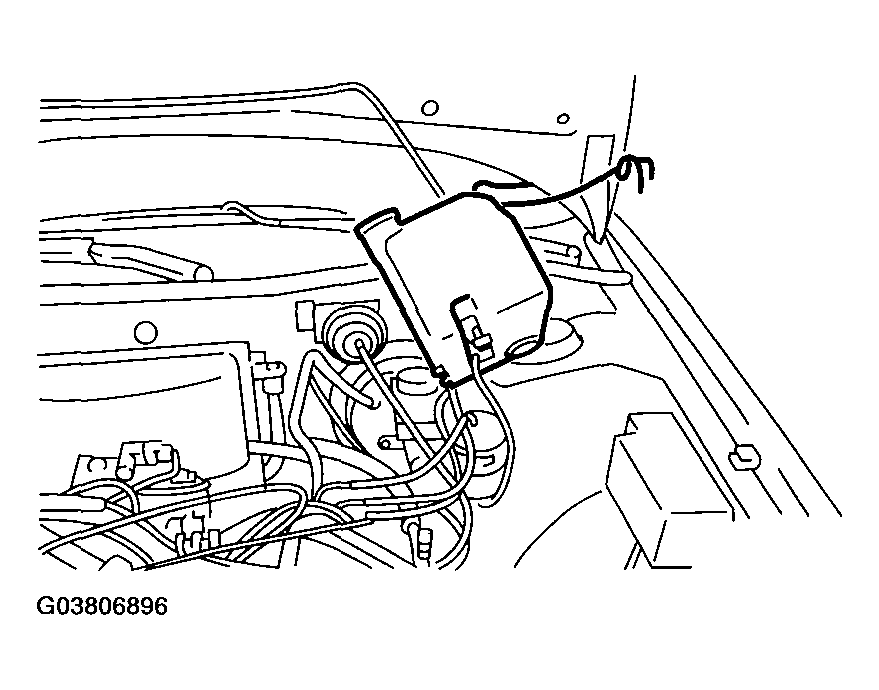

Fig 3: Disconnecting Rear Window Glass Washer Hose From Washer Motor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from ignition coil.

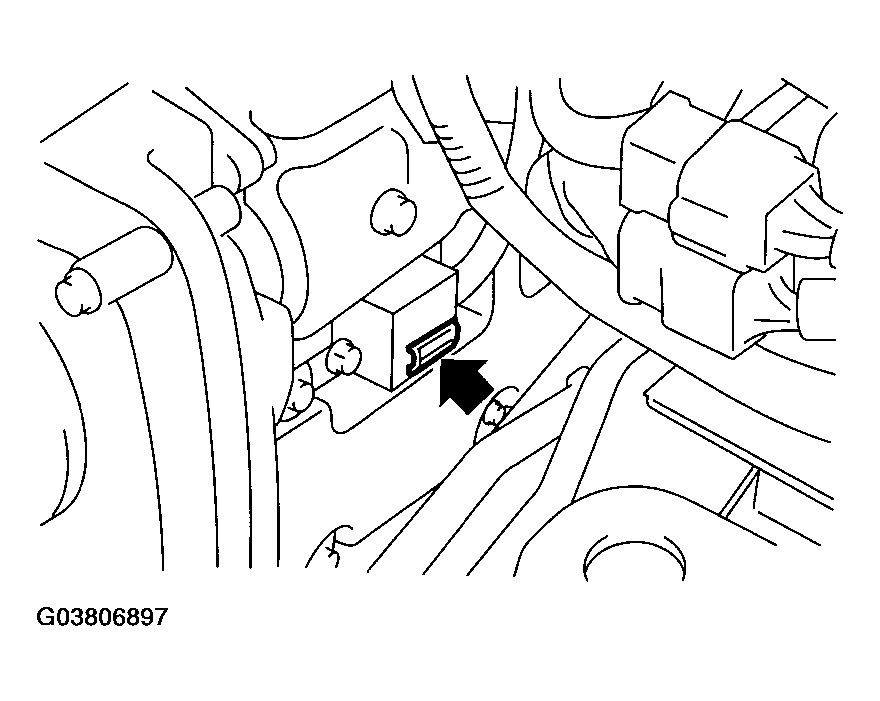

Fig 4: Disconnecting Connector From Ignition Coil
Courtesy of SUBARU OF AMERICA, INC.
Remove the ignition coil.

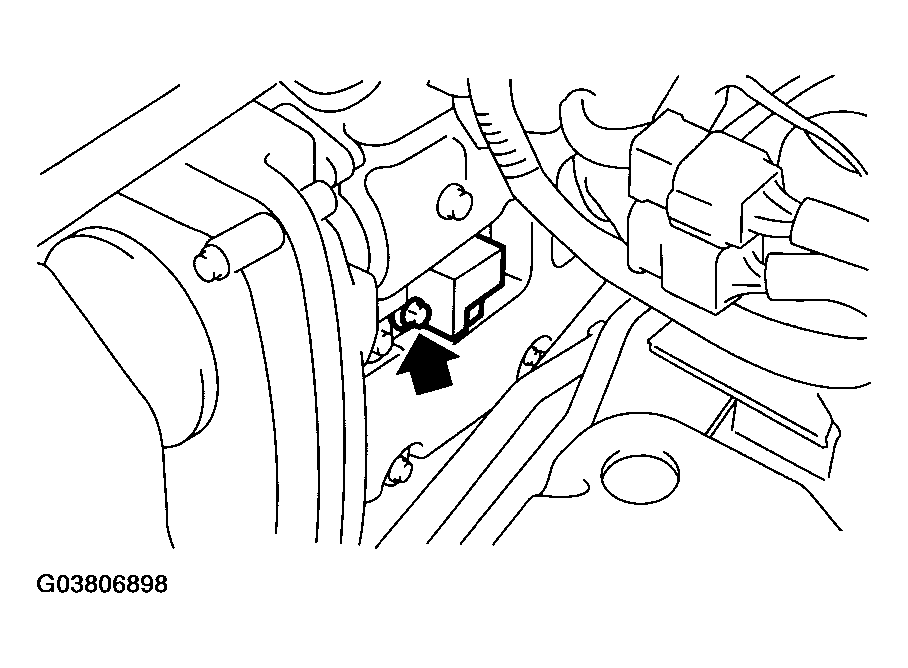

Fig 5: Removing Ignition Coil
Courtesy of SUBARU OF AMERICA, INC.
Remove the spark plugs with the spark plug sockets.

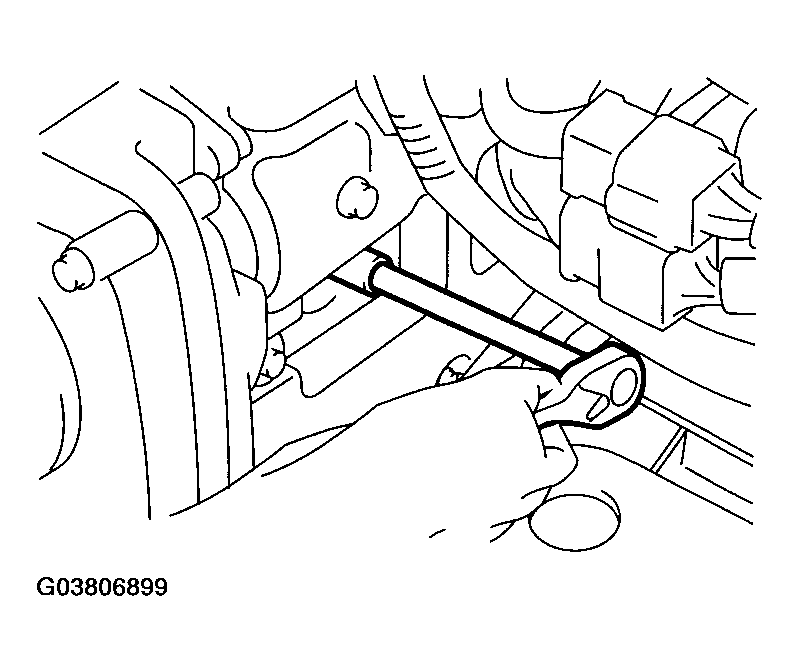

Fig 6: Removing Spark Plugs With Spark Plug Sockets
Courtesy of SUBARU OF AMERICA, INC.
