Section 10 (Clutch System)
›
General Description
›
Components
›
Clutch Assembly
Clutch Assembly
WARNING:
This page is about a different variant/trim than selected.
Non-turbo model

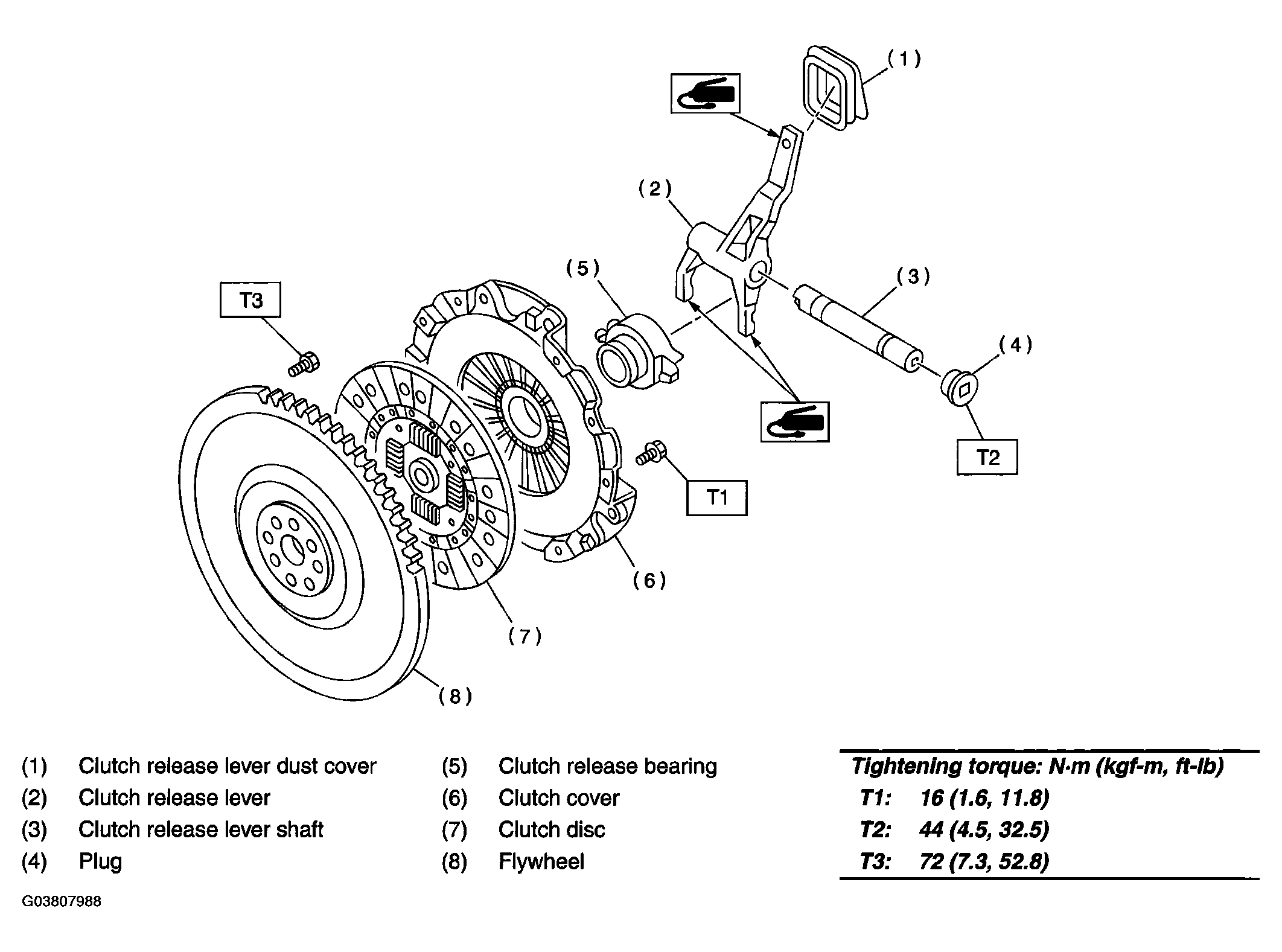

Fig 1: Exploded View Of Non-Turbo Model Clutch Assembly Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Turbo model

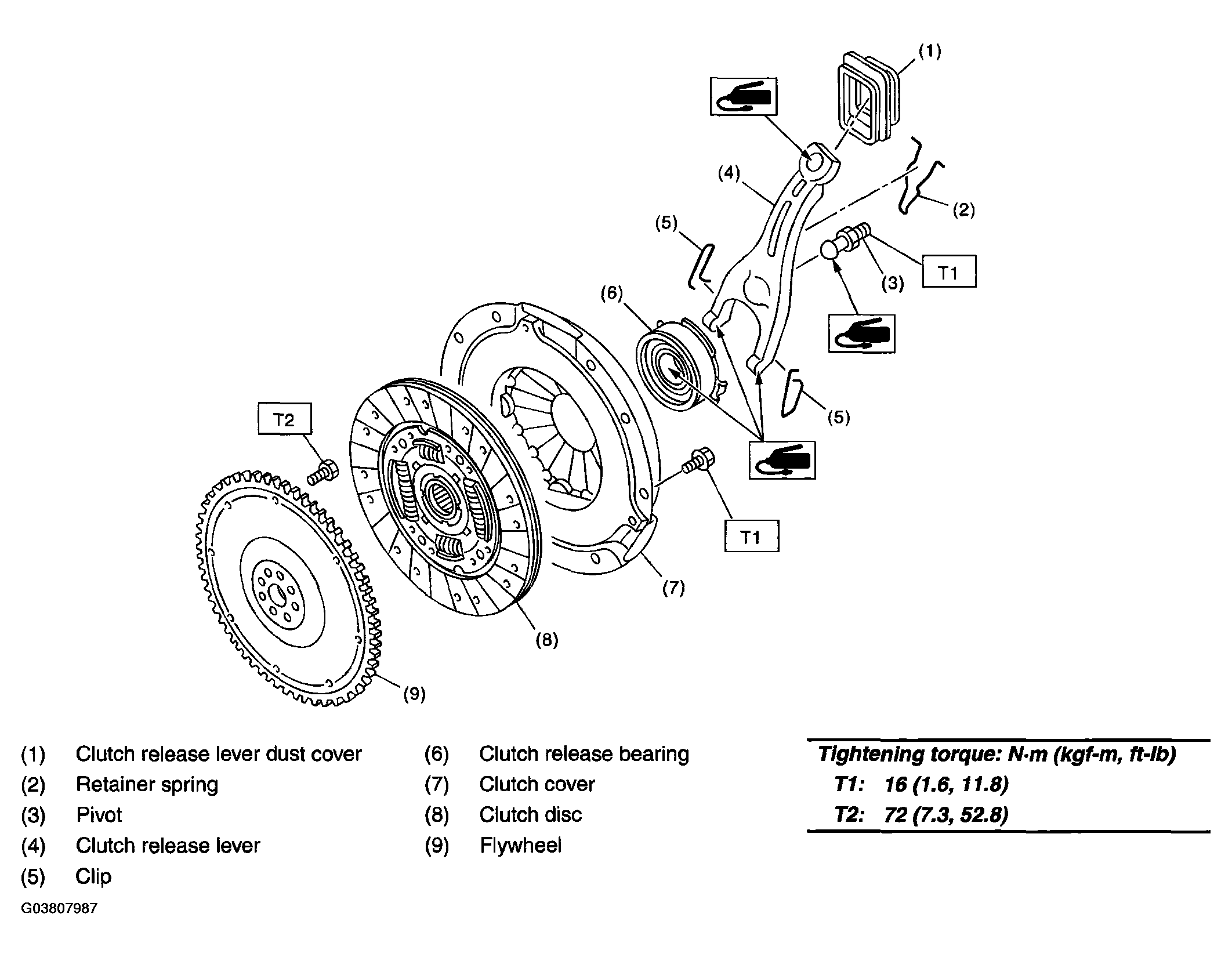

Fig 2: Exploded View Of Turbo Model Clutch Assembly Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
