Fuse Installation

A vehicle just delivered has no fuse for the room lamp circuit to prevent battery discharge. Attach a 15 A fuse (A) as shown in the figure.

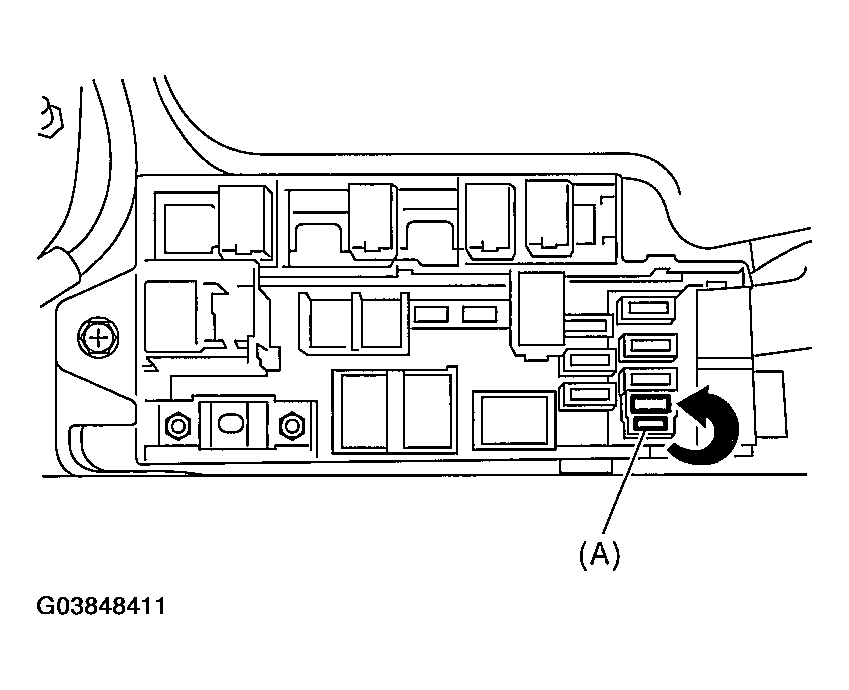

Fig 1: Attaching 15 A Fuse
G03848411Courtesy of SUBARU OF AMERICA, INC.
