Extension Case: Disassembly

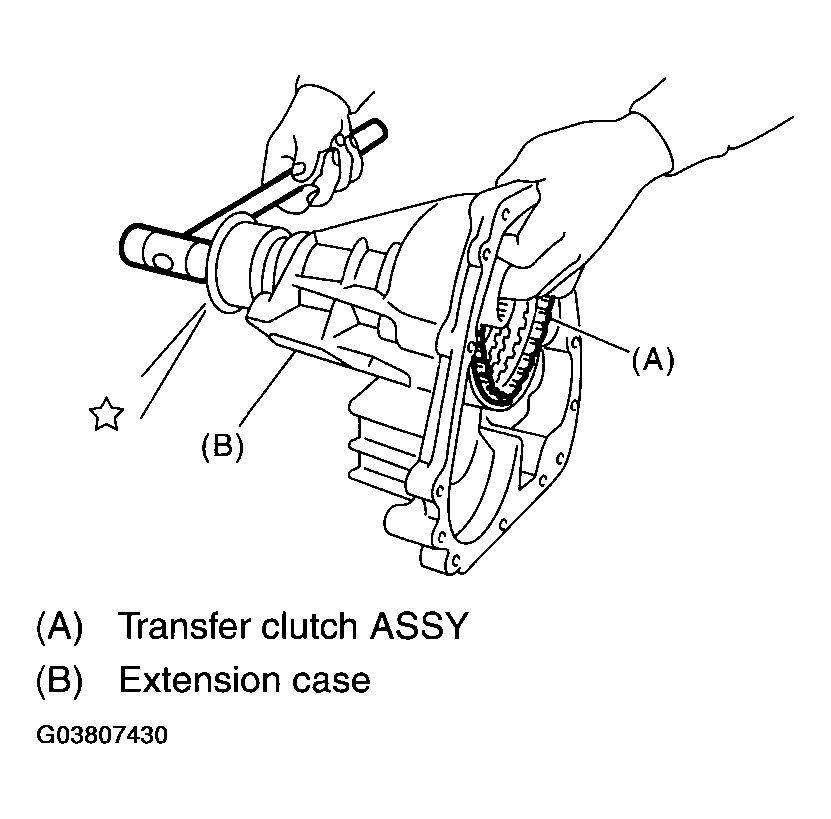

Take out the transfer clutch assembly by lightly tapping the end of the rear drive shaft using a plastic hammer.
NOTE: Be careful not to damage the oil seal in the extension.

Fig 1: Taking Out Transfer Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.

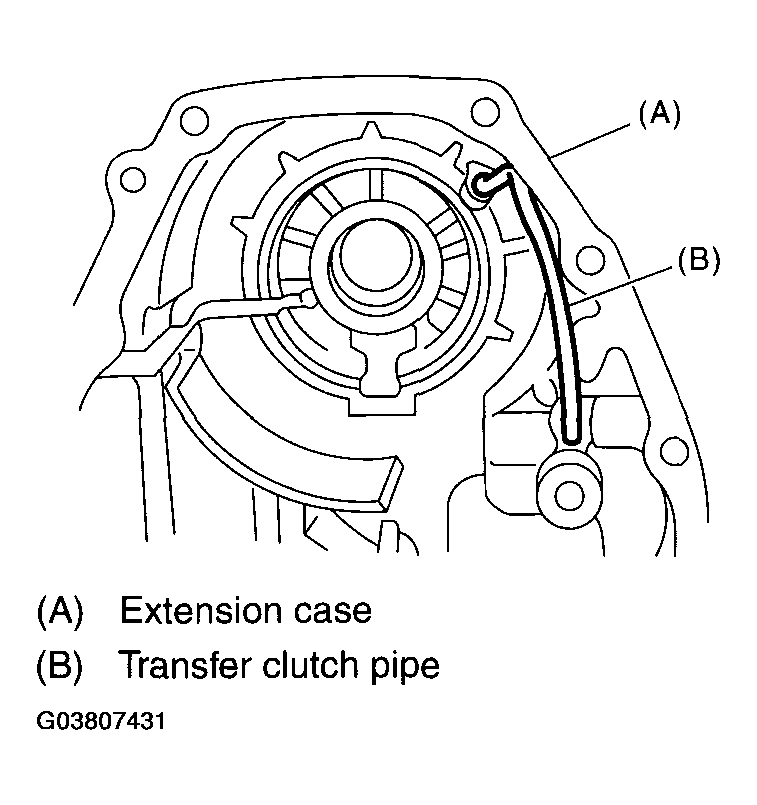

Remove the transmission clutch pipe without bending pipe.

Fig 2: Removing Transmission Clutch Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the dust cover from the extension case.
Remove the oil seal from the extension case.
