Extension Case: Installation

Apply Vaseline to the selected thrust needle bearing, and then attach the selected thrust needle bearing to the end surface of reduction drive gear. < Ref. to ADJUSTMENT , Transfer Clutch. >
NOTE: Install thrust needle bearing in the correct direction.
Install new gasket.
Install the extension case to the transmission case.
Tighten bolts to secure the case.
Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

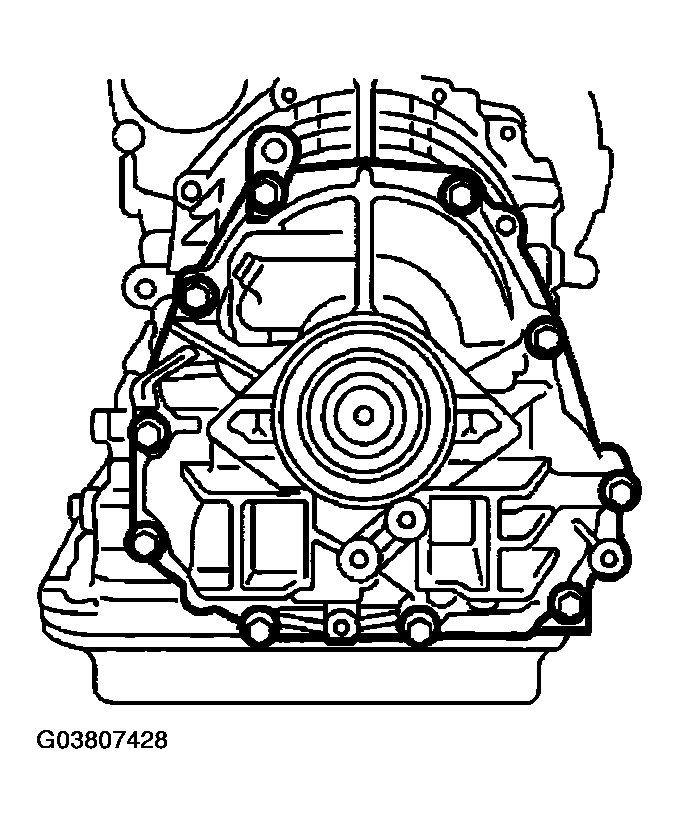

Fig 1: Installing Transmission Case Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear vehicle speed sensor.
Tightening torque:

7 N.m (0.7 kgf-m, 5.1 ft-lb)

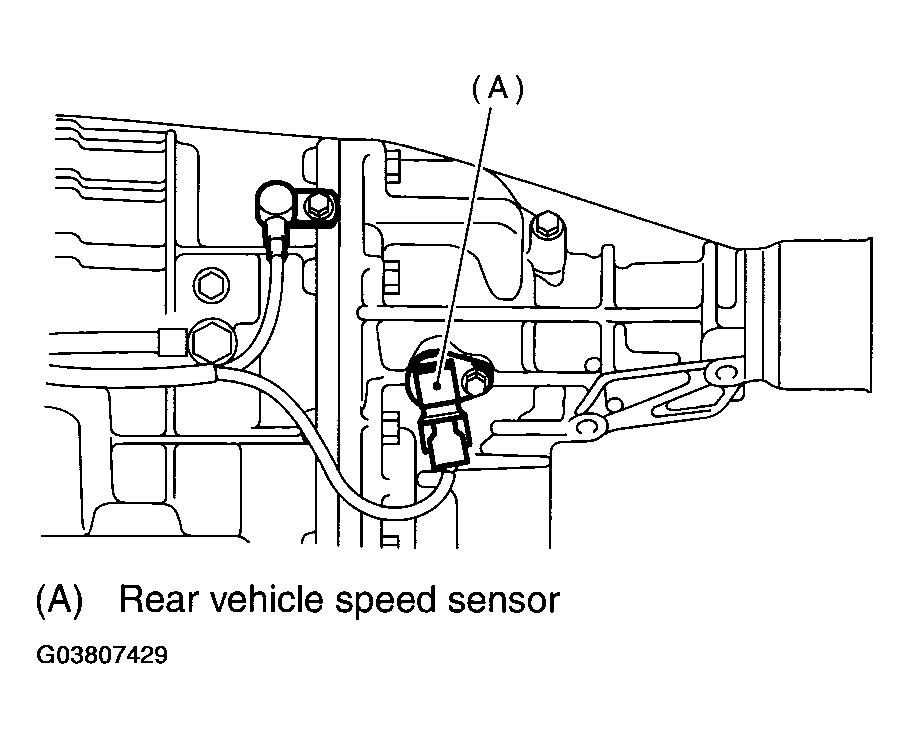

Fig 2: Installing Rear Vehicle Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
